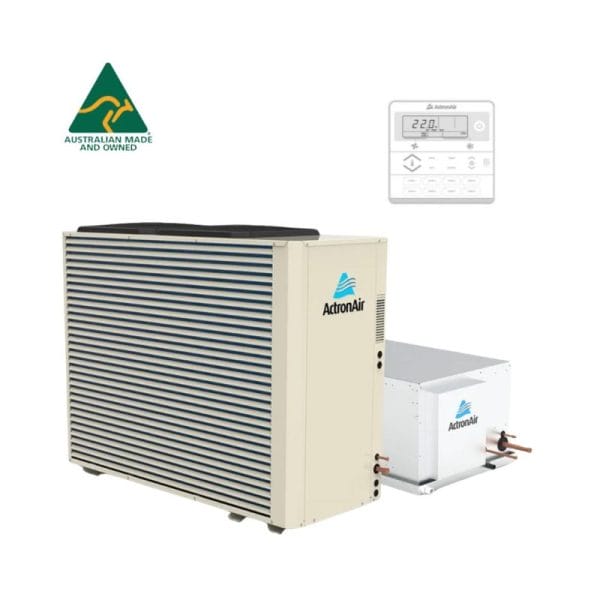

ActronAir Advance CRV240T | EVV240S 21.0kW Split Ducted Air Conditioner System | 3 Phase

SKU: CRV240T / EVV240S

ActronAir Advance CRV240T | EVV240S 21kW Split Ducted Air Conditioner System | 3 Phase
Includes 7 day wall controller (White/Grey) – 8 Zone
Optional NEO Controller : NEO TOUCH Master Wall Controller (Black/White)

Optional available Supply Air Vbox:

Or own it from $413.46 weekly for 6 months*

Or pay in slices, no interest ever

Select Controller

Clear

Or own it from $413.46 weekly for 6 months*

Or pay in slices, no interest ever

Technical Information
OUTDOOR MODEL		CRV240T
INDOOR MODEL		EVV240S
¹ Total (Gross) Capacity (kW) (AS/NZS3823.1.2)	Cooling (Rated)	21.55
	Heating (Rated)	22.50
Nett (Rated) Capacity (kW) (AS/NZS3823.1.2)	Cooling (Min/Rated/ )	5.20 / 21.00 / 24.00
Nett (Rated) Capacity (kW) (AS/NZS3823.1.2)	Heating (Min/Rated/ )	5.00 / 23.00 / 25.00
Input Power (kW) (AS/NZS3823.1.2)	Cooling (Rated)	6.10
Input Power (kW) (AS/NZS3823.1.2)	Heating (Rated)	6.57
² EER Rated (AS/NZS3823.1.2) ³ COP Rated (AS/NZS3823.1.2)	Cooling (Rated)	3.44
	Heating (Rated)	3.50
Power Supply (V / Ph / Hz)	Outdoor	400V / 3Ph + N / 50Hz
Power Supply (V / Ph / Hz)	Indoor	230V / 1Ph + N / 50Hz
Rated Load Amps (AS/NZS3823.1.2) Full Load Amps (AS/NZS3823.1.2)	Outdoor / Indoor / Total	8.4 / 3.8 / 12.2
	Outdoor / Indoor / Total	16.6 / 6.0 / 22.6
⁴ Circuit Breaker Amps		25.0
IP Rating	Outdoor	IP44
IP Rating	Indoor	IP20
Compressor	Type / No. per Unit	Tru-Inverter Variable Speed Scroll / 1
Compressor	Starting Method	Inbuilt Soft Starting
No. Refrigeration Circuits/No. Capacity Stages (Capacity range)		1 / Variable Capacity (20-100%)
Refrigerant		R410A
Fans (Type x Number per unit)	Outdoor	Axial / 6 Pole External Rotor / Direct Drive x 2
Fans (Type x Number per unit)	Indoor	Twin Deck Centrifugal / ECM Direct Drive x 1
Airflow Range Indoor (l/s)	Maximum	1360
	Nominal	1130
	Minimum	960
Outdoor Dimensions (mm)	Depth	685
	Height	1105
	Width	1685
Indoor Dimensions (mm)	Depth	695
	Height	485
	Width	1470
⁵ Nominal Weight (kgs)	Outdoor	209
⁵ Nominal Weight (kgs)	Indoor	78
⁶ Sound Pressure Level (dBA) ⁷ Sound Power Level (dBA)	Outdoor (low/high fan)	44.3 / 46.9 / 60.0
	Outdoor (low/high fan)	63.7 / 65.8 /79.6
MEPS Compliant		Yes
⁸ Demand Response Capability (AS4755.3)		Capable

Indoor Features

Integrated zone card
All indoor units come with integrated zoning ready for up to 8 zones.

Additional sensing points
The Advance can support up to 3 wall controllers and 3 remote sensors, each of which can be assigned to a zone to provide better temperature control for better comfort.

Safety Drain Tray included as standard
Removes the need to purchase as an additional accessory.

Outdoor Features

Louvered Grille
The Advance’s powder coated louvered grille guard allows for better airflow and protection against Australia’s extreme weather conditions.

Coated Coil Protection
The Advance uses blue fin epoxy coated protection on its indoor and outdoor coils, which helps to reduce corrosion from the harsh Australian conditions, as well as assisting the defrosting process, thus improving heating efficiency.

Quieter Operation
Our Advance system’s outdoor unit features the latest fan technology to deliver smoother and quieter operation.

Sound Reduction System (SRS) technology
The Advance utilises a compressor jacket (fitted as standard) which helps to muffle the compressor’s noise. Dual vibration absorption rubbers and a compressor plate also work together to enhance vibration absorption, which minimises noise transfer to the base. The outdoor unit also has a unique, stiffened design that reduces vibration transfer throughout the cabinet.
