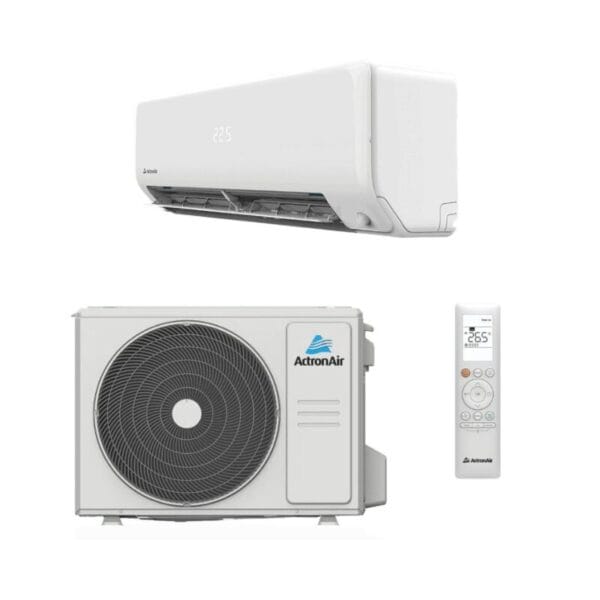

ActronAir Serene 2 WRE-035CS 3.5kW Inverter Split System Air Conditioner
3.50 kW Cooling | 3.70 kW Heating
5.5 Star Energy Rating
ActronAir Serene 2 WRE-035CS 3.5kW Inverter Wall Split System
Includes Indoor WRE-035CS | Outdoor WRC-035CS
RC-02 Remote Controller
5 Years Manufacturer’s Warranty
| Technical Information | ||
| OUTDOOR MODEL | WRC-035CS | |
| INDOOR MODEL | WRE-035CS | |
| Nett (Rated) Capacity (kW) (AS/NZS3823.1.1) | Cooling (min – max) | 3.50 (1.50 – 4.90) |
| Heating (min – max) | 3.70 (1.80 – 5.10) | |
| Input Power (kW) (AS/NZS3823.1.1) | Cooling Rated | 0.73 |
| Heating Rated | 0.77 | |
| 1 EER Rated (AS/NZS3823.1.1)
2 COP Rated (AS/NZS3823.1.1) |
Cooling Rated | 4.79 |
| Heating Rated | 4.81 | |
| Star Rating (AS/NZS3823.1.1) Hot/Average/Cold | Cooling | 5.5 / 5 / 5.5 |
| Heating | 4 / 3.5 / 2.5 | |
| Power Supply – (V / Ph / Hz) | Outdoor | 220 – 240 V / 1Ph+N / 50Hz |
| Rated Load Amps (AS/NZS3823.1.1) | Cooling | 3.2 |
| Heating | 3.4 | |
| Full Load Amps (AS/NZS3823.1.1) | 10.5 | |
| Circuit Breaker Amps | 16.0 | |
| Suggested Minimum Mains Cable Size | 2.5mm2 | |
| Suggested Minimum Indoor to Outdoor Cable Size & Type | Size | 1.0mm2 |
| Type | 3 Core + Earth | |
| IP Rating | Outdoor | IP24 |
| Indoor | IP20 | |
| Moisture Removal (L/hr) | 1.7 | |
| Compressor | Inverter Rotary | |
| Refrigerant | R-32 | |
|
Airflow Range Indoor (l/s) |
Boost | 250 |
| High | 180 | |
| Medium | 120 | |
| Low | 100 | |
|
Outdoor Dimensions (mm) |
Depth | 333 |
| Height | 554 | |
| Width | 805 | |
|
Indoor Dimensions (mm) |
Depth | 225 |
| Height | 295 | |
| Width | 795 | |
| Nominal Weight (kgs) | Outdoor | 32.1 |
| Indoor | 10.3 | |
| 4 Indoor Sound Pressure Level (dBA) | (SI/Low / Med / High) | 24 / 30 / 32 / 38 |
| 4 Outdoor Sound Pressure Level (dBA) 1m | 52 | |
| 5 Outdoor Sound Power Level (dBA) | 58 | |
| Outdoor Operating Range (°C) | Cooling | -15°C to 60°C |
| Heating | -25°C to 30°C | |
| MEPS Certified
Field Pipe Size Liquid Pipe – mm (inch) Field Pipe Size Gas Pipe – mm (inch) |
Yes
6.35 (1/4) 9.52 (3/8) |
|
All star performer
Serene is one of ActronAir’s most energy efficient air conditioners yet, with our 2.65kW model reaching the highly sought after 7 star energy rating*.
*7 star energy rating applies to WRC-026CS / WRE-026CS combination. Rated under new climate zone SEER rating.
Serene is one of ActronAir’s most energy efficient air conditioners yet, with our 2.65kW model reaching the highly sought after 7 star energy rating*.
*7 star energy rating applies to WRC-026CS / WRE-026CS combination. Rated under new climate zone SEER rating.
More cooling in extreme heat
With a market-leading operating range of up to 60°c, Serene is guaranteed to keep working in hotter temperatures. Not only that, Serene is also able to maintain far better capacity in extreme heat than comparable systems, which provides you with more cooling comfort right when you need it most.
With a market-leading operating range of up to 60°c, Serene is guaranteed to keep working in hotter temperatures. Not only that, Serene is also able to maintain far better capacity in extreme heat than comparable systems, which provides you with more cooling comfort right when you need it most.
R32 for efficient energy performance
Serene uses R32 refrigerant – a gas that offers a low Global Warming Potential – reducing its impact on our environment.
Serene uses R32 refrigerant – a gas that offers a low Global Warming Potential – reducing its impact on our environment.
AC vs DC for rockin’ efficiency and performance
Serene uses more energy efficient Direct Current (DC) inverter technology in its inverter compressor, indoor fan and outdoor fan. While some competitors use less efficient AC technology, or combinations of both, we choose DC technology as it can make a huge difference to your electricity bill. With an impressive 25 frequency stages, our DC inverter compressor is up to 35% more efficient than AC technology, while Serene’s DC outdoor fan with five speed settings is up to 40% more efficient. The result is improved efficiencies overall, as well as optimal cooling performance at high and low ambient temperatures, and quieter operation on part load.
Serene uses more energy efficient Direct Current (DC) inverter technology in its inverter compressor, indoor fan and outdoor fan. While some competitors use less efficient AC technology, or combinations of both, we choose DC technology as it can make a huge difference to your electricity bill. With an impressive 25 frequency stages, our DC inverter compressor is up to 35% more efficient than AC technology, while Serene’s DC outdoor fan with five speed settings is up to 40% more efficient. The result is improved efficiencies overall, as well as optimal cooling performance at high and low ambient temperatures, and quieter operation on part load.
3D Airflow
3D Airflow provides total comfort coverage, ensuring that airflow is distributed evenly throughout the room for more complete comfort.
3D Airflow provides total comfort coverage, ensuring that airflow is distributed evenly throughout the room for more complete comfort.
Intuitive Proximity Sensor
When activated, the Intuitive Proximity Sensor enables Serene to detect human movement, allowing it to run at reduced capacity when there’s been nobody in the room for 30 minutes. And to ensure you stay comfortable, it’s smart enough to automatically revert back whenever someone re-enters the room.
When activated, the Intuitive Proximity Sensor enables Serene to detect human movement, allowing it to run at reduced capacity when there’s been nobody in the room for 30 minutes. And to ensure you stay comfortable, it’s smart enough to automatically revert back whenever someone re-enters the room.
Description
3.50 kW Cooling
3.70 kW Heating
Gold Standard Protection
High Density Filter
