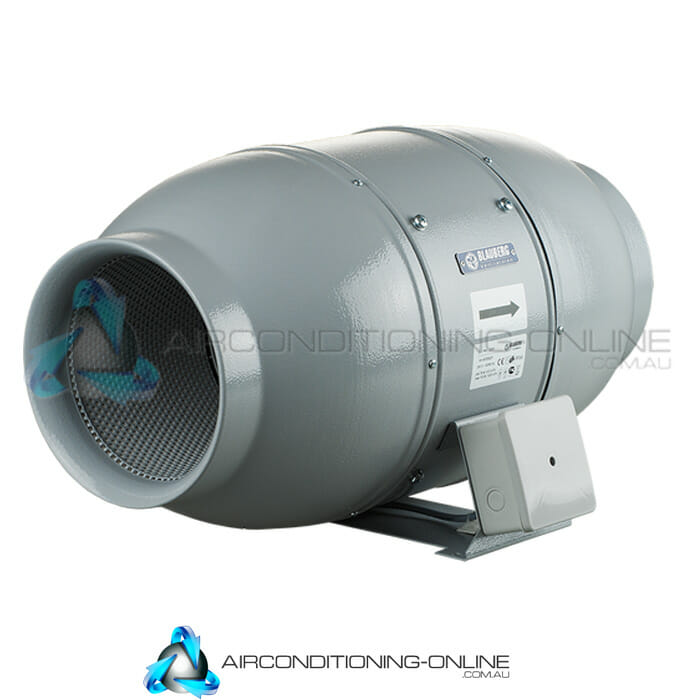

Blauberg Inline Fan MIXFLO 150mm 2 Speed Fan | Silent

USE

• Supply and extraction ventilation of offices, bathrooms, toilets, laundries, kitchens, ensuites in apartments, hotels, homes and commercial buildings.
• Ventilation air ducts requiring high pressure, powerful air flow and low noise level
• Compatible with ∅ 100 up to 315 mm round air ducts.

DESIGN

• The casing is made of low flammable polypropylene.
• Ventilation unit with terminal box. Can be turned to any position.
• Special design of the casing permits easy dismantling of the impeller and motor block for fan servicing without dismantling the air duct.

MOTOR

• 220–240 V single phase at 50 Hz.
• All motors have a sealed ball bearing motor with a service life of up to 40,000 hours, are 2 speed with an exterior two speed switch.
• All motors have manual reset thermal overload protection as required for inline duct fans AS/NZS60335-2-80:2004.
• 100 mm & 125 mm fans cannot be speed controlled.

MODIFICATION

• T: turn-off delay timer adjustable from 2 to 30 minutes.
• G: speed controller, temperature controller with external temperature sensor (cable length 4 m), power cable with Australian plug.

WIRING

• Comes with a 1.2 m lead, 2 pin plug, and external two-speed switching.
• Timer fans come with a 1.2 m lead, 4 pin plug, and external two-speed switching.

MOUNTING

• Due to the compact design the fan is the ideal solution for mounting in limited spaces, including space behind a false ceiling.
• The fan can be installed in any section of the ventilation system from intake to the end of the ductworks.
• Wall or ceiling mounting with a mounting plate.
