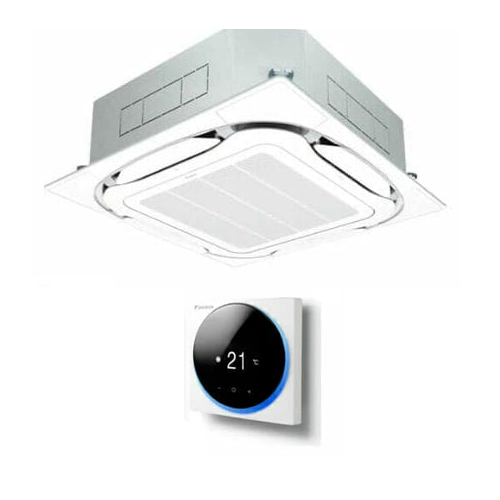

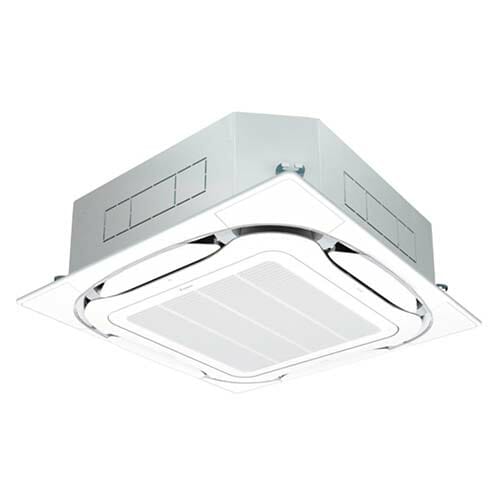

Daikin FCTA100A-VC2V 10kW Premium Streamer Cassette Reverse Cycle - 1 Phase

Daikin FCTA100A-VF2V 10kW Premium Streamer Reverse Cycle Cassette Air Conditioner System | 1 Phase

SKU: FCTA100A-VF2V / FCTA100AVMA / RZAV100F2V1 / BYCQ125EAF / BRC1H63W

10.0 kW Cooling
12.0 kW Heating

Daikin FCTA100A-VF2V 10kW Premium Streamer Cassette Reverse Cycle – 1 Phase
Includes Indoor – FCTA100AVMA | Outdoor – RZAV100F2V1 | 1 Phase
Fascia – BYCQ125EAF
Wired Controller – BRC1H63W

Or own it from $202.50 weekly for 6 months*

Or pay in slices, no interest ever

Or own it from $202.50 weekly for 6 months*

Or pay in slices, no interest ever

Model Name	Indoor unit		FCTA100AVMA
	Indoor unit		FCA100CVMA
	Outdoor unit		RZAV100F2V1
Power supply			1 Phase, 220-240V, 50Hz
Cooling capacity1,3 Rated (Min. – Max.)		kW	10.0 (3.5-13.5)
Heating capacity2,3 Rated (Min. – Max.)		kW	12.0 (3.5-14.5)
Power consumption	Cooling 1	kW	2.38
Power consumption	Heating 2	kW	2.49
EER	Cooling	kW/kW	4.21
COP	Heating	kW/kW	4.81
AEER	Cooling		4.12
ACOP	Heating		4.72
TCSPF (Cooling) Commercial / Residential	Hot		7.55 / 6.49
	Average		8.11 / 5.68
	Cold		9.37 / 5.82
HSPF (Heating) Commercial / Residential	Hot		6.04 / 6.03
	Average		5.63 / 5.30
	Cold		5.11 / 4.73
Indoor unit	Colour	Unit	———
	Colour	Decoration panel	Fresh White
	Airflow rate (H / HM / M / ML / L)	/s	575 / 517 / 458 / 400 / 333
	Airflow rate (H / HM / M / ML / L)	m3/min	34.5 / 31.0 / 27.5 / 24.0 / 20.0
	Sound pressure level4 (H / HM / M / ML / L)	dB(A)	45.0 / 42.0 / 39.0 / 36.5 / 34.0
	Dimensions (HXWXD)	Unit	298X840X840
	Dimensions (HXWXD)	Decoration panel	50X950X950
	Machine weight	Unit	26
	Machine weight	Decoration panel	5.5
	Certified operation range	Cooling	14 to 25
	Certified operation range	Heating	15 to 27
Outdoor	Colour		Ivory White
unit	Compressor	Type	Hermetically sealed swing type
	Compressor	Motor output	3.3
	Refrigerant charge (R-32)	kg	3.20 (Charged for 40 m)
	Sound pressure level 4	Cooling / Heating	49 / 50
	Sound pressure level 4	Night quiet mode	45
	Sound power level	dB(A)	68
	Dimensions (HXWXD)	mm	870X1,100X460
	Machine weight	kg	93
	Certified operation range	Cooling	-5 to 50
	Certified operation range	Heating	-15 to 15.5
Piping connections	Liquid (Flare)	mm	o/ 9.5
	Gas (Flare)	mm	o/ 15.9
	Drain	Indoor unit	VP25 (I.D. o/ 25XO.D. o/ 32)
	Drain	Outdoor unit 5	Connectable hose I.D. o/ 25
Max. interunit piping length		m	85 (Equivalent length 100)
Max. installation height difference		m	30
Heat insulation			Both liquid and gas piping

Key Features

Round Flow Cassette with Streamer

Available in – Reverse Cycle (Heating & Cooling)
Capacities – Premium Inverter: 5.0kW-14.0kW
Refrigerant- R32

The SkyAir Round Flow Cassette with Streamer utilises 360 degree airflow distribution to ensure even temperatures throughout the space, this provides a comfortable environment for building occupants all year round while also remaining discrete. Additionally, its built-in Streamer technology facilitates powerful oxidative decomposition of pollutants present on the cassette’s filter for enhanced indoor air quality.

The Round Flow Cassette with Streamer are paired with our Premium Inverter (RZAV) condensers, offering building owners substantial operating efficiencies to help minimise operating costs. R22 retrofit capability is also available on these condensers allowing for a simplified cost effective replacement solution.

Daikin FCTA100A-VF2V 10kW Premium Streamer Reverse Cycle Cassette Air Conditioner System | 1 Phase – Brochure
