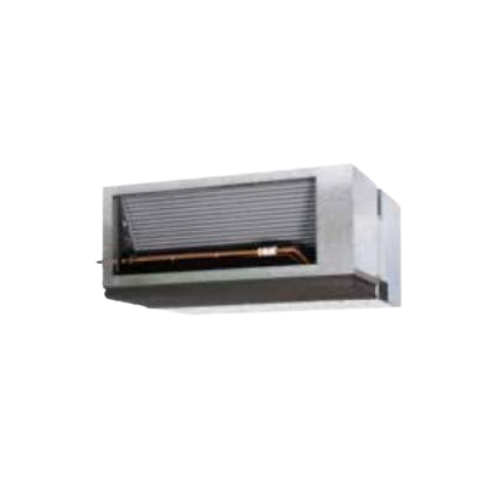

DAIKIN FDYUA71A9-2V4AL24 7.1kW Premium Inverter Underfloor Ducted System 1 Phase

SKU: FDYUA71A9-2V4AL24

7.1 kW Cooling
7.5 kW Heating

R32 | SUPERIOR ENERGY PERFORMANCE

Indoor Unit: FDYUA71AV19 | Outdoor Unit : RZAS71C2V1

Zone Box:
BRC24TLZ4B9 – Linear, Up to 4 Zones (24v) | BRC1E63 – Standard Nav Ease Controller Included
BRC24TLZ8B9 – Linear, Up to 8 Zones (24v) | BRC1E63 – Standard Nav Ease Controller Included
BRC24TZ4B9 – On / Off, Up to 4 Zones (24v) | BRC1E63 – Standard Nav Ease Controller Included
BRC24TZ8B9 – On / Off, Up to 4 Zones (24v) | BRC1E63 – Standard Nav Ease Controller Included
BRC24Z4B9 – Up to 4 Zones (24v)
BRC24Z8B9 – Up to 8 Zones (24v)
BRC230Z4B9 – Up to 4 Zones (240v)
BRC230Z8B9 – Up to 8 Zones (240v)



Or own it from $182.50 weekly for 6 months* zip money
Or pay in slices, no interest ever

Or own it from $182.50 weekly for 6 months* zip money
Or pay in slices, no interest ever
> > Compare
INDOOR UNIT  FDYUA71AV19
OUTDOOR UNIT RZAS71C2V1
Rated Capacity Cool (kW) 7.1
Heat (kW) 7.5
Capacity Range Cool (kW) 3.2-8.0
Heat (kW) 3.5-9.0
Power Input (Rated) Cool (kW) 1.90
Heat (kW) 1.75
E.E.R/C.O.P C/H 3.74/4.29
TCSPF (Residential) Hot/Average/Cold 5.20/4.50/4.55
HSPF (Residential) Hot/Average/Cold 4.79/4.34/3.86
Airflow Rate (Nominal/Max) l/s 425/566
Indoor Sound Level (H) @ 1.5m dBA (C/H) 37.3/40.5
Piping Length m 75
Indoor Fan Speeds H/M/L
Dimensions (HxWxD) Indoor (mm) 300x1210x900
Outdoor (mm) 990x940x320
Weight Indoor (kg) 40
Outdoor (kg) 69
Power Supply V/Hz 1 Phase, 220-240V, 50Hz
ompressor Type Hermetically Sealed Swing Type
Refrigerant R32
Pipe Sizes Liquid (mm) 9.5 (Flared)
Gas (mm) 15.9 (Flared)
Drain (mm) ID 25 / OD 32
Supply Air Opening mm (HxW, Flange) 185×852
Return Air Opening mm 1×400 (Oval)
Outdoor Operating Range Cool (CDB) -5 to 50
Heat (CWB) -15 to 16
EPA Sound Power Level dBA 67
Outdoor Sound Level (H) @ 1m Pressure dBA (C/H) 48/50
  • Industry Leading

    Industry Leading Energy Performance

    Achieved with a redesigned cross-pass heat exchanger, DC fan motor and improved refrigerant control technology.



  • Night Quiet Mode

    Night Quiet Mode

    Reduces the outdoor noise levels during sleeping hours and automatically resumes normal operations in the morning.



  • Wide-Capacity Limit

    Increased Operation Limits

    The refrigerant cooled PCB technology incorporated in the outdoor unit enables continuous operations up to 50°CDB ambient.



  • Powerful Heating

    Heating Focus Option

    Heating Focus models are available from 18.0-24.0kW with improved heating performance, ideal for cold climates such as Canberra, Hobart & Melbourne.



  • R22-Retrofit Capability

    R22 Retrofit Capability

    Provides a cost effective and convenient upgrade from an existing R22 ducted system whilst retaining the field piping (not available for Heating Focus models).



  • Australian-Made

    Australian Made

    Indoor units are specifically designed and manufactured to Australian standards to withstand the harsher summer climate.

DAIKIN Ducted Air Conditioner Systems Features

Daikin Premium Inverter provides superior comfort in next to no time. Engineered to deliver remarkable energy performance, design flexibility and R22 retrofit capability, the Premium Inverter Ducted range is perfect for providing discreet air conditioned comfort throughout your entire home.

Description

7.1 kW Cooling
7.5 kW Heating

R32 | New Model
