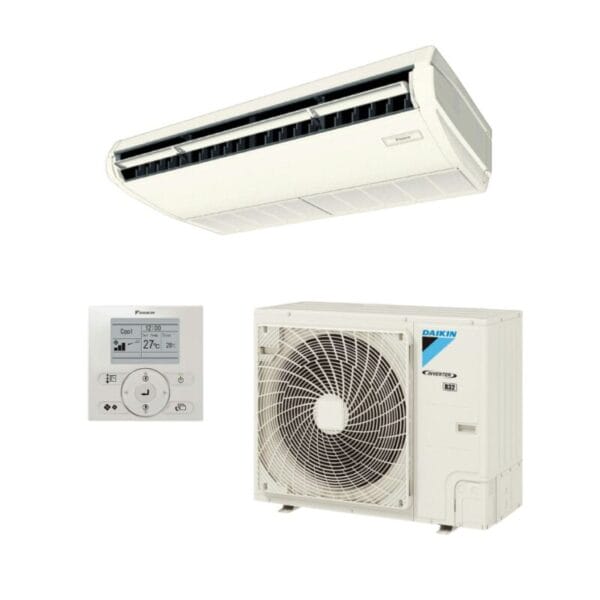

Model Name
|
Indoor unit | FHA140CVMA |
Outdoor unit | RZAV140F2Y1 | |
Power supply | 1 Phase, 220-240V, 50Hz | |
Cooling capacity1,3 Rated (Min. – Max.) | kW | 14.0 (3.5-15.0) |
Heating capacity2,3 Rated (Min. – Max.) | kW | 16.5 (3.5-18.0) |
Power consumption
|
Cooling 1 – KW | 4.13 |
Heating 2 – KW | 4.77 | |
EER | Cooling – kW/kW | 3.39 |
COP | Heatin – kW/kW | 3.46 |
AEER | Cooling | 3.35 |
ACOP | Heating | 3.42 |
TCSPF (Cooling) Commercial / Residential
|
Hot | 5.99 / 5.26 |
Average | 6.73 / 4.85 | |
Cold | 7.72 / 5.03 | |
HSPF (Heating) Commercial / Residential
|
Hot | 5.39 / 5.27 |
Average | 4.80 / 4.28 | |
Cold | 4.16 / 3.64 | |
Indoor unit
|
Colour – Unit | White |
Airflow rate (H / HM / M / ML / L) l/s | 567 / 525 / 483 / 442 / 400 | |
Airflow rate (H / HM / M / ML / L) m3/min | 34.0 / 31.5 / 29.0 / 26.5 / 24.0 | |
Sound pressure level4 (H / HM / M / ML / L) dB(A) | 46.0 / 44.0 / 42.0 / 40.0 / 38. | |
Dimensions (HXWXD) Unit mm | 235X1,590X690 | |
Machine weight Unit Kg | 38 | |
Certified operation range Cooling CWB | 14 to 25 | |
Certified operation range Heating CDB | 15 to 27 | |
Outdoor unit
|
Colour | Ivory White |
Compressor – Type | Hermetically sealed swing type | |
Compressor – Motor output kW | 3.3 | |
Refrigerant charge (R-32) kg | 3.70 (Charged for 40 m) |
|
Sound pressure level 4 – Cooling / Heating – dB(A) | 50 / 51 | |
Sound pressure level 4 – Night quiet mode – dB(A) | 46 | |
Sound power level dB(A) | – | |
Dimensions (HXWXD) MM | 870X1,100X460 | |
Machine weight Kg | 95 | |
Certified operation range Coolig CDB | -5 to 50 | |
Certified operation range Heating CWB | -15 to 15.5 | |
Piping connections
|
Liquid (Flare) mm | o/ 9.5 |
Gas (Flare) | o/ 15.9 | |
Drain Indoor Unit – mm | VP20 (I.D.o/ 20XO.D.o/ 26) | |
Drain Outdoor Unit – mm | Connectable hose I.D. o/ 25 | |
Max. interunit piping length | m | 85 (Equivalent length 100) |
Max. installation height difference | m | 30 |
Heat insulation | Both liquid and gas piping |
