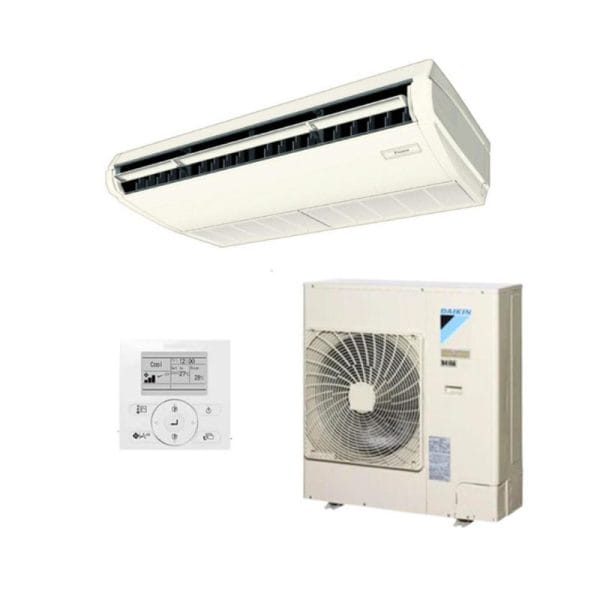

Model Name
|
Indoor unit | FHA60CAVMA |
Outdoor unit | RZAV60C2V1 | |
Power supply | 1 Phase, 220-240V, 50Hz | |
Cooling capacity1,3 Rated (Min. – Max.) | kW | 6.0 (1.4-7.1) |
Heating capacity2,3 Rated (Min. – Max.) | kW | 7.1 (1.4-8.0) |
Power consumption
|
Cooling 1 – KW | 1.8 |
Heating 2 – KW | 2.09 | |
EER | Cooling – kW/kW | 3.33 |
COP | Heatin – kW/kW | 3.4 |
AEER | Cooling | 3.24 |
ACOP | Heating | 3.31 |
TCSPF (Cooling) Commercial / Residential
|
Hot | 5.23 / 4.76 |
Average | 5.22 / 4.05 | |
Cold | 5.55 / 4.11 | |
HSPF (Heating) Commercial / Residential
|
Hot | 4.85 / 4.83 |
Average | 4.42 / 4.11 | |
Cold | 3.89 / 3.52 | |
Indoor unit
|
Colour – Unit | White |
Airflow rate (H / HM / M / ML / L) l/s | 250 / 225 / 200 / 183 / 167 | |
Airflow rate (H / HM / M / ML / L) m3/min | 15.0 / 13.5 / 12.0 / 11.0 / 10.0 | |
Sound pressure level4 (H / HM / M / ML / L) dB(A) | 37.0 / 36.0 / 35.0 / 33.5 / 32.0 | |
Dimensions (HXWXD) Unit mm | 235X960X690 | |
Machine weight Unit Kg | 25 | |
Certified operation range Cooling CWB | 14 to 25 | |
Certified operation range Heating CDB | 15 to 27 | |
Outdoor unit
|
Colour | Ivory White |
Compressor – Type | Hermetically sealed swing type | |
Compressor – Motor output kW | 1.3 | |
Refrigerant charge (R-32) kg | 1.35 (Charged for 30 m) | |
Sound pressure level 4 – Cooling / Heating – dB(A) | 48 / 51 | |
Sound pressure level 4 – Night quiet mode – dB(A) | 44 | |
Sound power level dB(A) | 68 | |
Dimensions (HXWXD) MM | 595X845X300 | |
Machine weight Kg | 45 | |
Certified operation range Coolig CDB | -5 to 50 | |
Certified operation range Heating CWB | -15 to 15.5 | |
Piping connections
|
Liquid (Flare) mm | o/ 6.4 |
Gas (Flare) | o/ 12.7 | |
Drain Indoor Unit – mm | VP20 (I.D.o/ 20XO.D.o/ 26) | |
Drain Outdoor Unit – mm | Connectable hose I.D. o/ 16 | |
Max. interunit piping length | m | 50 (Equivalent length 70) |
Max. installation height difference | m | 30 |
Heat insulation | Both liquid and gas piping |
