MODEL | RXYMQ3A2V4A | ||
Power Supply | 1-phase, 230-240 V, 50 Hz | ||
Cooling Capacity | kcal/h | 7,740 | |
Btu/h | 30,700 | ||
kW | 9 | ||
Heating Capacity | kcal/h | 8,600 | |
Btu/h | 34,100 | ||
kW | 10 | ||
Power Consumption | Cooling | kW | 2.44 |
Heating | 2.28 | ||
Capacity Control | % | 24 to 100 | |
Casing Colour | Ivory white (5Y7.5/1) | ||
Compressor | Type | Hermetically sealed swing type | |
Motor Output | kW | 1.92 | |
Airflow Rate | l/s | 1,267 | |
mᶟ/min | 76 | ||
Dimensions (HxWxD) | mm | 990 x 940 x 320 | |
Machine Weight | kg | 71 | |
Sound level (Cooling/Heating) | dB(A) | 51/52 | |
Sound power | dB(A) | 69 | |
Operation Range | Cooling | °CDB | -5 to 46 |
Heating | °CWB | -20 to 15.5 | |
Refrigerant | Type | R-410A | |
Charge | kg | 2.9 | |
Piping connections | Liquid | mm | ø9.5 (Flare) |
Gas | ø15.9 (Flare) | ||
Connectable Units | Up to 5 |

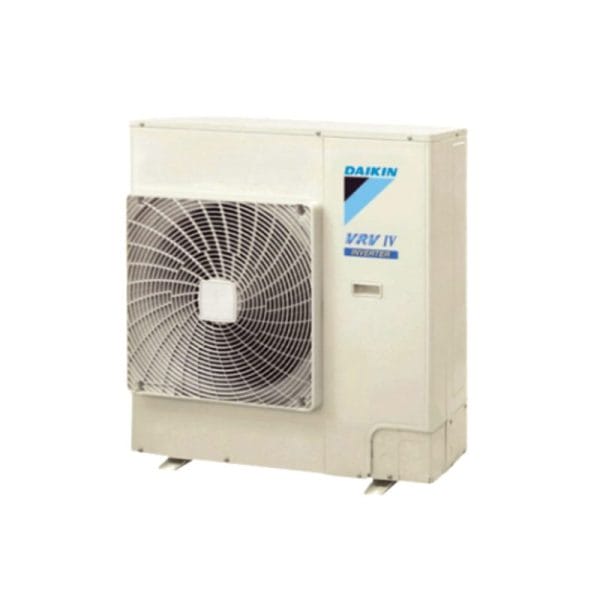

DAIKIN RXYMQ3A2V4A 9.0kW VRV IV-S Reverse Cycle Multi System Outdoor Only
9.0kW VRV IV-S Reverse cycle multi system RXYMQ3A2V4A, 5 indoor units, R410A Refrigerant
Description
9.0 kW Cooling
10.0 kW Heating
1 Phase
5 Max Connectable Indoors Units
