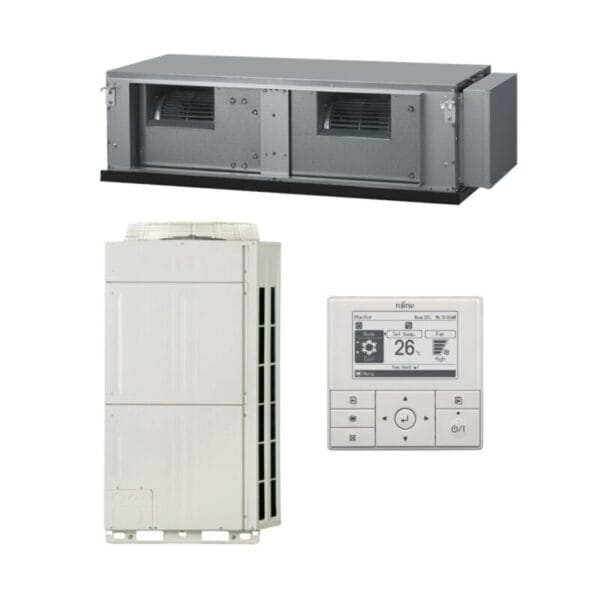

FUJITSU SET-ARTC72LATU 20.3kW Inverter Ducted Air Conditioner System 3 Phase

SKU: SET-ARTC72LATU / AOTA72LALT

20.3kW Cooling | 22.6kW Heating
Fujitsu Inverter Ducted Air Conditioner System
Includes Indoor ARTC72LATU | Outdoor AOTA72LALT | 3 Phase
Wired Back lit Controller UTY-RVNYN



Save: $2916.00

Original price was: $9,715.00.Current price is: $6,799.00.

Save: $2,916.00

> > > > Compare
Indoor Unit ARTC72LATU
Outdoor Unit AOTA72LALT
Operation Type Reverse Cycle
 Power Source V/Ph/HZ 415 / 3 / 50
Cooling Heating
 Capacity kW 20.3 (10.8 – 23.5) 22.6 (12.0 – 26.5)
 Input Power kW 6.25 (max 10.1) 6.27 (max 10.1)
 EER/COP kW/kW 3.25 3.60
 Star Rating
 Running Current Cooling/Heating Amps 9.3 / 9.3
 Moisture Removal L/Hr 4.5
 Noise Level Indoor Sound Pressure (High/Quiet) dBA 47
Outdoor Sound Pressure dBA 57
Outdoor Sound Power dBA 74
 Air Circulation (Indoor – High Fan) I/sec 1195
 Net DimensionsiHxWxD Indoor Unit mm 450 x 1587 x 700
kgs 100
Outdoor Unit mm 1690 x 930 x 765
kgs 215
 Piping Connections (Liquid/Suction) mm Ø 12.7 / Ø 25.4
 Max. Pipe Length (Precharged Length) m 75 (20)
 Max height Difference m 30
 Operation Range °CDB Cooling: -5 to 46, Heating: -15 to 24
Refrigerant R410A
Model No. – Indoor ARTC72LATU
Model No. – Outdoor AOTA72LALT
Reverse Cycle System Yes
Capacity Class
Cooling Capacity (Watts) 20,300
Cooling Capacity (BTU/h) 69,300
Range (Watts) 10,800 – 23,500
Range (BTU/h) 36,800 – 80,200
Heating Capacity (Watts) 22,600
Heating Capacity (BTU/h) 77,100
Range (Watts) 12,000 – 26,500
Range (BTU/h) 40,900 – 90,400
Power Supply (Volts) 415
Phase-Frequency (Ph – Hz) 3-50
Power Supply Attachment Outdoor
Plug Size (If Applicable)
Running Current, Cooling (Amps) 9.3
Running Current, Range (Amps) Max 22.8
Input, Cooling (Watts) 6,250
Input, Range (Watts) Max 10,100
Running Current, Heating (Amps) 9.3
Running Current, Range (Amps) Max 22.8
Input, Heating (Watts) 6,270
Input, Range (Watts) Max 10,100
Input (Watts)
Moisture Removal (l/hr) 4.5
E.E.R. – Cooling 3.25
C.O.P. – Heating 3.6
Star Rating – Cooling
Star Rating – Heating
Fan Speed 3
Air Circulation, High (l/s) 1195
Compressor Type Twin Rotary
Dimensions – Inside Unit (HxWxD mm) 450 x 1,587 x 700
Weight – Inside Unit (kg) 100
Dimensions – Outside Unit (HxWxD mm) 1,690 x 930 x 765
Weight – Outside Unit (kg) 215
I.U. Sound Pressure Level (dBA@1mtr) 47
O.U. Sound Pressure Level (dBA@1mtr) 57
O.U. Sound Power Level (dBA) 74
Refrigerant Type R410A
Connection Pipe Sizes, Gas (mm) 25.4
Connection Pipe Sizes, Liquid (mm) 12.7
Pre Charged Length (Metre) 20
Minimum Pipe Length (Metre) 5
Maximum Pipe Length (Metre) 75
Maximum Pipe Height (Metre) 30
Pipe Connection Methods Brazing
Outdoor operating Temp, Cooling ℃ -5 to 46
Outdoor operating Temp, Heating ℃ -15 to 24

FUJITSU SET-ARTC72LATU 20.3kW Inverter Ducted Air Conditioner System 3 Phase – Brochure

Description

20.3 kW Cooling
22.6 kW Heating

Automatic Air Flow Adjustment
