Fujitsu SET-AUTH54KRTA-T5 13.0kW Circular Flow Cassette Inverter Air Conditioner Single Phase | R32
Fujitsu SET-AUTH54KRTA-T5 13.0kW Inverter Cassette Split Systems | R32

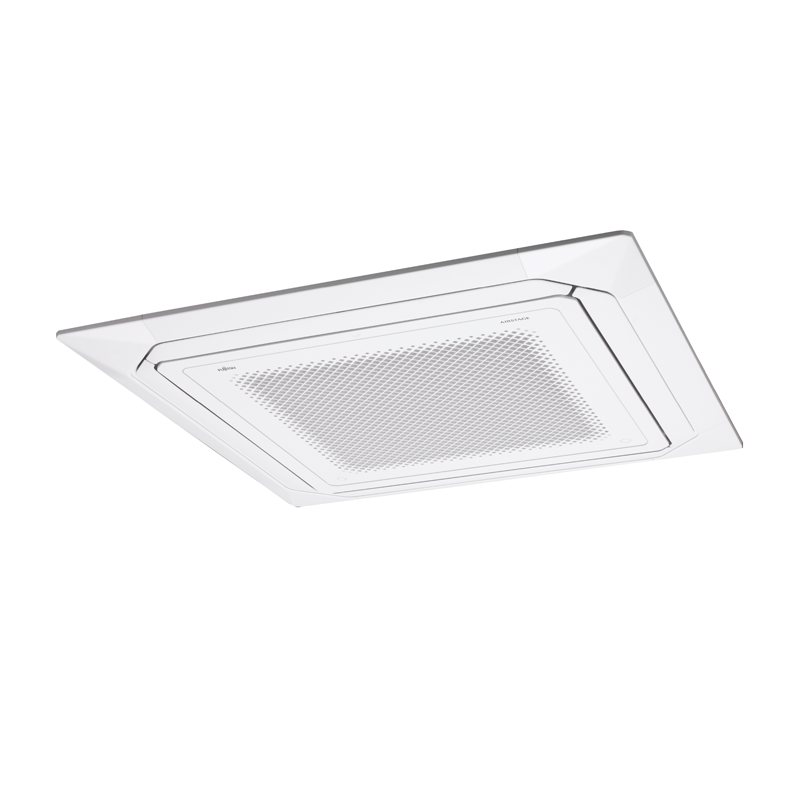

Indoor AUTH54KRTA – Outdoor AOTH54KBTA – Grille UTG-UKTB-W

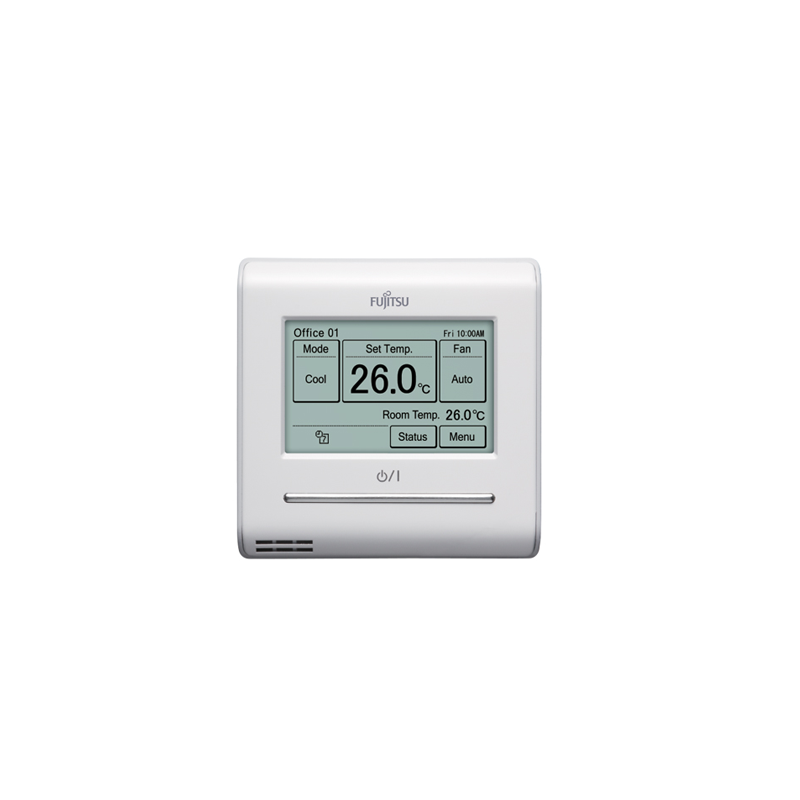

Wired Controller: UTY-RNRYT5
5 Years Manufacturer’s Warranty

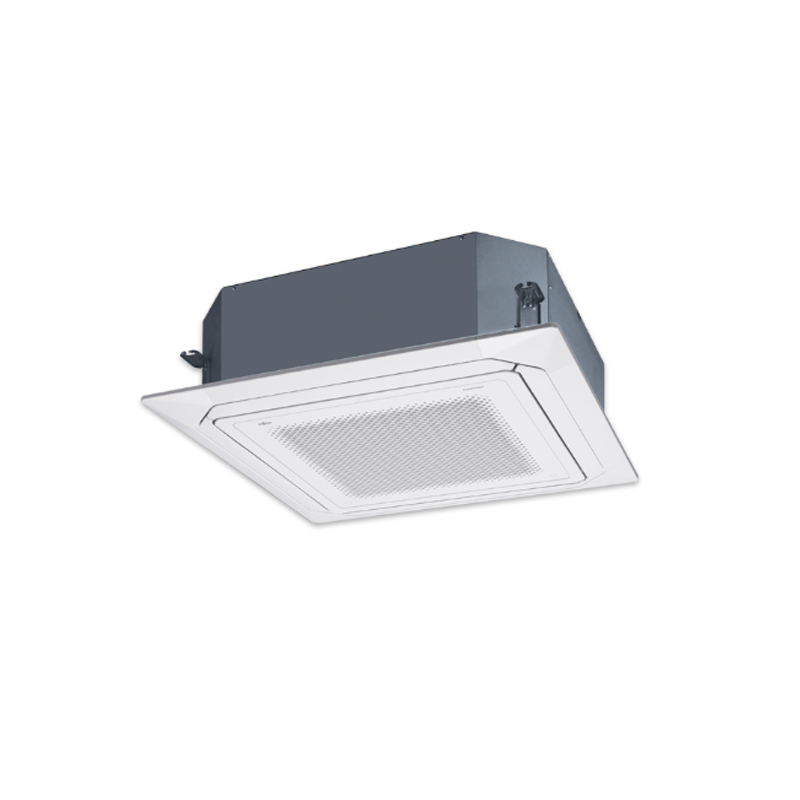

| Indoor unit | AUTH54KRTA |

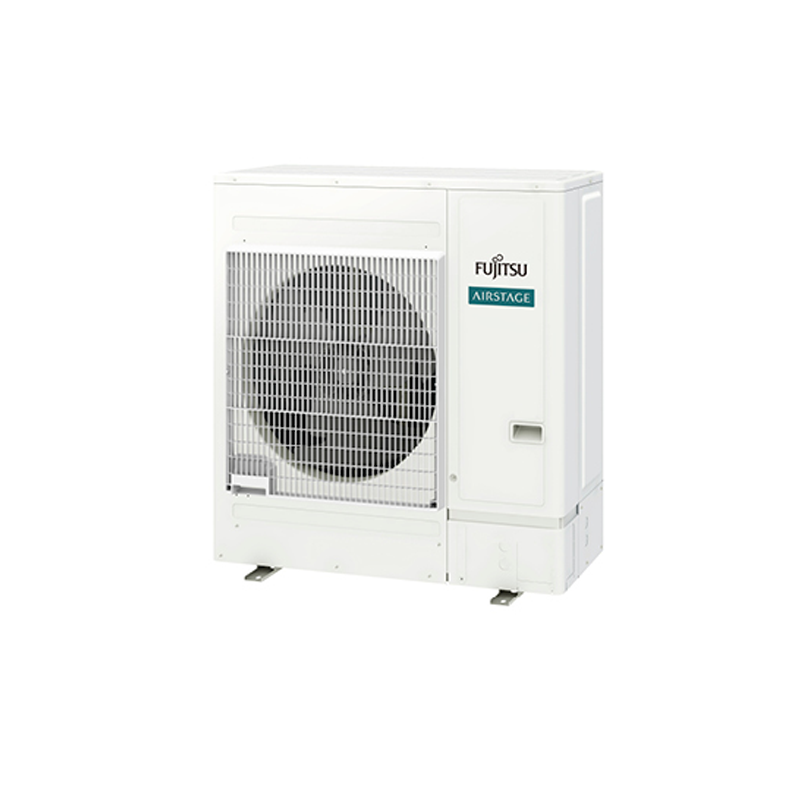

| Outdoor unit | AOTH54KBTA |
| Operation Type | Reverse Cycle |
| Power Source V/Ph/Hz | 230 / 1 / 50 |
| Cooling Capacity kW (Rated (Min – Max)) | 13.00 (4.5 – 15) |
| Heating Capacity kW (Rated (Min – Max)) | 15.50 (4.7 – 18) |
| Input Power Cooling kW (Rated (Min – Max)) | 4.04 (5.19) |
| Input Power Heating kW (Rated (Min – Max)) | 4.07 (5.23) |
| EER Cooling kW/kW | 3.22 |
| COP Heating kW/kW | 3.81 |
| Star Rating Cooling (0-10) (Hot / Average / Cold) | 3 / 2.5 / 3 |
| Star Rating Heating (0-10) (Hot / Average / Cold) | 3 / 2 / 1.5 |
| Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 4.662 / 4.454 / 4.722 |
| Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 4.997 / 5.185 / 5.598 |
| Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 4.997 / 5.185 / 5.598 |
| Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 4.937 / 4.239 / 3.65 |
| Running Current amps (Cooling / Heating) | 18.1 / 17.8 |
| Moisture Removal l/hr | 5 |
| Indoor Sound Pressure Cooling dBA (High / Quiet) | 47 / 36 |
| Indoor Sound Pressure Heating dBA (High / Quiet) | 47 / 36 |
| Outdoor Sound Pressure dBA (Cooling / Heating) | 55 / 57 |
| Outdoor Sound Power dBA | 72 |
| Air Circulation (Indoor – High Fan) Cooling l/sec | 556 |
| Air Circulation (Indoor – High Fan) Heating l/sec | 556 |
| Indoor Unit Dimensions mm (Height x Width x Depth) | 288 x 840 x 840 |
| Indoor Unit Weight kg | 29 |
| Outdoor Unit Dimensions mm (Height x Width x Depth) | 998 x 940 x 320 |
| Outdoor Unit Weight kg | 67 |
| Grill Weight | 6 |
| Piping Connects mm Ø (Liquid / Gas) | 9.52 / 15.88 |
| Pipe Length m (Max (Precharged)) | 50 (30) |
| Max Height Difference m | 30 |
| Operation Range Cooling °CDB (Min to Max) | -10 to 50 |
| Operation Range Heating °CDB (Min to Max) | -15 to 24 |
| Refrigerant Type | R32 |
| Refrigerant Amount g | 2,700 |
KEY FEATURES
- 10°C Heat OperationThe room temperature can be set to go no lower than 10°C, thus ensuring that the room does not get too cold when not occupied.
- All DCWith All DC, electricity loss is decreased and power consumption reduced.
- Auto RestartShould there be a temporary loss of power, the unit will automatically restart itself in the same operating mode, once the power is restored.
- Auto ChangeoverThe unit automatically switches between operating modes based on the temperature setting and room temperature.
- Automatic Air Flow AdjustmentThe micro-processor automatically adjusts the air flow to follow changes in room temperature.
- Automatic LouvreThe position of the louvres is set automatically to match the operating mode. It is also possible to adjust the louvres using the remote control.
- Blue Fin Heat ExchangerCorrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchanger.
- Circular Flow DistributionCreates a consistent and even temperature via multi-directional 360˚ airflow functionality.
- Demand ResponseThis product is designed to be compatible with Air Conditioning Demand Response program. When your electricity supplier activates one of the three modes the air conditioner switches over to the appropriate operation.
- Economy ModeLimits the maximum operation current, and performs operation with the power consumption suppressed.
- Filter SignSelect appropriate intervals for displaying the filter sign on the indoor unit according to the estimated amount of dust in the air of the room.
- i-PAMi-PAM inverter technology enables high output and high efficiency performance.
- On-Off TimerON-OFF timer can be set to operate once every 24 hours.
- Program TimerThis timer allows selection of one of four options. ON, OFF, ON ––> OFF, or OFF ––> ON.
- Removable Intake GrillThe indoor unit’s intake grille can be removed for easy cleaning and maintenance.
- Sleep TimerThe micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.
- Super Quiet ModeThe indoor units fan can operate at a low speed to produce quieter operation.
- V-PAMv-PAM inverter technology increases the maximum output of the compressor significantly and enables high power and high efficiency.
- Washable PanelDust that accumulates on the air conditioner can be easily cleaned with a damp cloth.
- Weekly + Setback TimerWeekly + setback timer can set temperature for two time spans and for each day of the week.
- Weekly TimerDifferent ON-OFF times can be set for up to 7 days.
Description
13.0kW Cooling
15.5kW Heating
CIRCULAR FLOW | R32 | WIRED CONTROLLER
