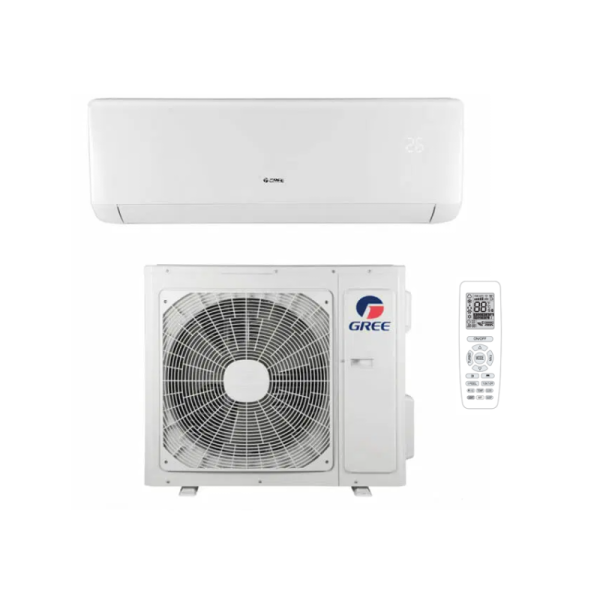

Model | GWC09ATBXB -K6DNA1C |
||||||||||
Performance | |||||||||||
Cooling Capacity | W | 2700 | |||||||||
Min/Max. Voltage | V | 198 / 264 | |||||||||
Min. Cooling Capacity | W | 660 | |||||||||
Max. Cooling Capacity | W | 3400 | |||||||||
Cooling Power Input | W | 714 | |||||||||
Min. Cooling Power Input | W | 180 | |||||||||
Max. Cooling Power Input | W | 1200 | |||||||||
Cooling Current | A | 2.7 | |||||||||
Rated Input | W | 1100 | |||||||||
Rated Current | A | 4.9 | |||||||||
Application Area | m2 | 10-16 | |||||||||
Set Temp Range | °C | 16~30 | |||||||||
Sound Pressure Level (Max/Min) | dB (A) | 40/22 | |||||||||
Sound Pressure Level | dB (A) | 51 | |||||||||
Sound Power Level | db (A) | 61 | |||||||||
AEER | W/W | 3.75 | |||||||||
EER | W/W | 3.78 | |||||||||
Cooling Energy Stars
|
Star Rating (Hot) | 3.5 | |||||||||
Star Rating (Average) | 3 | ||||||||||
Star Rating (Cold) | 3.5 | ||||||||||
Electrical | |||||||||||
Power Supply | 220-240/50hz/1ph | ||||||||||
Power Supply Mode | – | Outdoor | |||||||||
Cross-sectional Area of Power Cable Conductor | mm2 | 1 | |||||||||
Dimensions and Weights
|
|||||||||||
Indoor Dimensions (WxHxD) | mm | 783 x 260 x 185 | |||||||||
Indoor Net Weight | kg | 8 | |||||||||
Outdoor Dimensions (WxHxD) | mm | 732 x 555 x 330 | |||||||||
Outdoor Net Weight | kg | 24 | |||||||||
Installation | |||||||||||
Outdoor Unit Air Flow Volume | m3/h | 1950 | |||||||||
Operating Temperature Range | °C | -15 ~ 52 | |||||||||
Refrigerant | – | R32 | |||||||||
Refrigerant Charge | kg | 0.5 | |||||||||
Pre Charge Pipe Length | m | 7.5 | |||||||||
Gas Additional Charge | g/m | 12 | |||||||||
Pipe Connection | inch | 1/4 x 3/8 | |||||||||
Max Pipe Height | m | 10 | |||||||||
Max Pipe Length | m | 15 |
