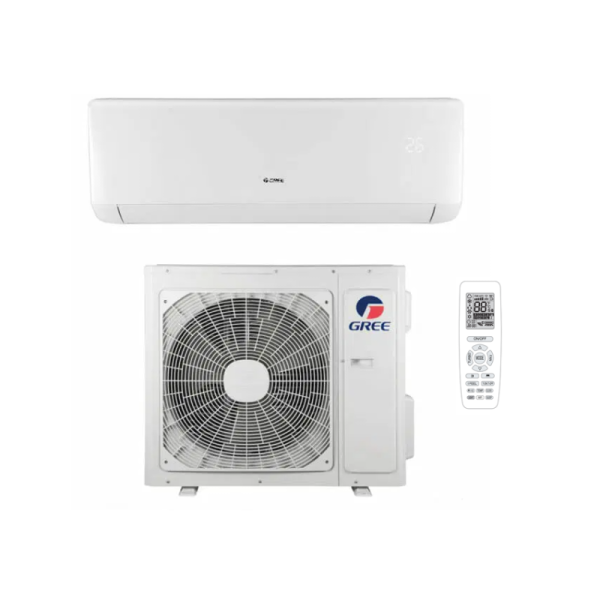

Model | GWC12ATCXB -K6DNA1B |
|||||||||||
Performance | ||||||||||||
Cooling Capacity | W | 3517 | ||||||||||
Min/Max. Voltage | V | 198 / 264 | ||||||||||
Min. Cooling Capacity | W | 500 | ||||||||||
Max. Cooling Capacity | W | 4200 | ||||||||||
Cooling Power Input | W | 940 | ||||||||||
Min. Cooling Power Input | W | 200 | ||||||||||
Max. Cooling Power Input | W | 1550 | ||||||||||
Cooling Current | A | 4.3 | ||||||||||
Rated Input | W | 1500 | ||||||||||
Rated Current | A | 7.3 | ||||||||||
Application Area | m2 | 16-24 | ||||||||||
Set Temp Range | °C | 16~30 | ||||||||||
Sound Pressure Level (Max/Min) | dB (A) | 43/26 | ||||||||||
Sound Pressure Level | dB (A) | 51 | ||||||||||
Sound Power Level | db (A) | 62 | ||||||||||
AEER | W/W | 3.72 | ||||||||||
EER | W/W | 3.74 | ||||||||||
Cooling Energy Stars
|
Star Rating (Hot) | 4.5 | ||||||||||
Star Rating (Average) | 4 | |||||||||||
Star Rating (Cold) | 4 | |||||||||||
Electrical | ||||||||||||
Power Supply | 220-240/50hz/1ph | |||||||||||
Power Supply Mode | – | Outdoor | ||||||||||
Cross-sectional Area of Power Cable Conductor | mm2 | 1 | ||||||||||
Dimensions and Weights
|
||||||||||||
Indoor Dimensions (WxHxD) | mm | 835 x 275 x 200 | ||||||||||
Indoor Net Weight | kg | 8.5 | ||||||||||
Outdoor Dimensions (WxHxD) | mm | 732 x 555 x 330 | ||||||||||
Outdoor Net Weight | kg | 24.5 | ||||||||||
Installation | ||||||||||||
Outdoor Unit Air Flow Volume | m3/h | 2000 | ||||||||||
Operating Temperature Range | °C | -15 ~ 52 | ||||||||||
Refrigerant | – | R32 | ||||||||||
Refrigerant Charge | kg | 0.5 | ||||||||||
Pre Charge Pipe Length | m | 7.5 | ||||||||||
Gas Additional Charge | g/m | 12 | ||||||||||
Pipe Connection | inch | 1/4 x 3/8 | ||||||||||
Max Pipe Height | m | 10 | ||||||||||
Max Pipe Length | m | 20 |
