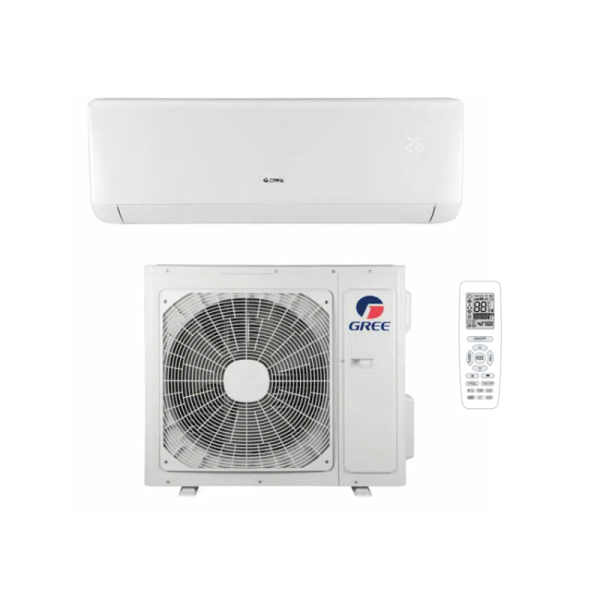

Model | GWC18ATDXD-K6DNA1C | |||||||||||
Performance | ||||||||||||
Cooling Capacity | W | 5200 | ||||||||||
Min/Max. Voltage | V | 198 / 264 | ||||||||||
Min. Cooling Capacity | W | 800 | ||||||||||
Max. Cooling Capacity | W | 6300 | ||||||||||
Cooling Power Input | W | 1530 | ||||||||||
Min. Cooling Power Input | W | 100 | ||||||||||
Max. Cooling Power Input | W | 2300 | ||||||||||
Cooling Current | A | 6.5 | ||||||||||
Rated Input | W | 1750 | ||||||||||
Rated Current | A | 9 | ||||||||||
Application Area | m2 | 23-34 | ||||||||||
Set Temp Range | °C | 16~30 | ||||||||||
Sound Pressure Level (Max/Min) | dB (A) | 46/25 | ||||||||||
Sound Pressure Level | dB (A) | 56 | ||||||||||
Sound Power Level | db (A) | 65 | ||||||||||
AEER | W/W | 3.35 | ||||||||||
EER | W/W | 3.4 | ||||||||||
Cooling Energy Stars
|
Star Rating (Hot) | 3.5 | ||||||||||
Star Rating (Average) | 3 | |||||||||||
Star Rating (Cold) | 3.5 | |||||||||||
Electrical | ||||||||||||
Power Supply | 220-240/50hz/1ph | |||||||||||
Power Supply Mode | – | Outdoor | ||||||||||
Cross-sectional Area of Power Cable Conductor | mm2 | 1.5 | ||||||||||
Dimensions and Weights
|
||||||||||||
Indoor Dimensions (WxHxD) | mm | 943 x 333 x 246 | ||||||||||
Indoor Net Weight | kg | 13 | ||||||||||
Outdoor Dimensions (WxHxD) | mm | 802 x 555 x 350 | ||||||||||
Outdoor Net Weight | kg | 31 | ||||||||||
Installation | ||||||||||||
Outdoor Unit Air Flow Volume | m3/h | 2200 | ||||||||||
Operating Temperature Range | °C | -15 ~ 52 | ||||||||||
Refrigerant | – | R32 | ||||||||||
Refrigerant Charge | kg | 0.85 | ||||||||||
Pre Charge Pipe Length | m | 7.5 | ||||||||||
Gas Additional Charge | g/m | 12 | ||||||||||
Pipe Connection | inch | 1/4 x 1/2 | ||||||||||
Max Pipe Height | m | 10 | ||||||||||
Max Pipe Length | m | 25 |
