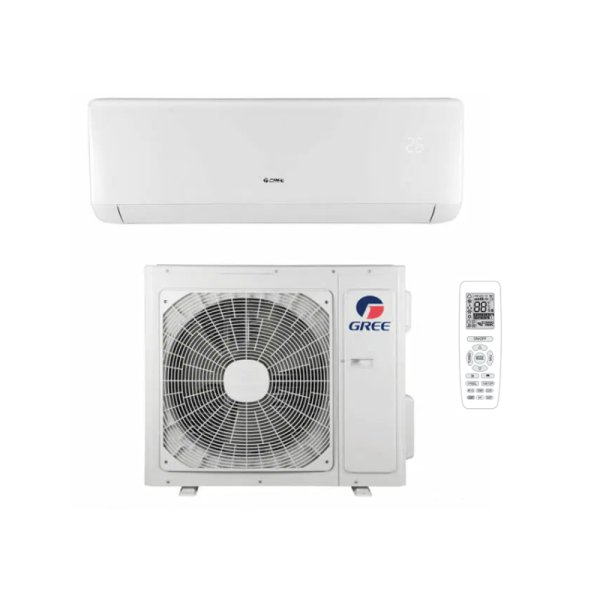

Model |

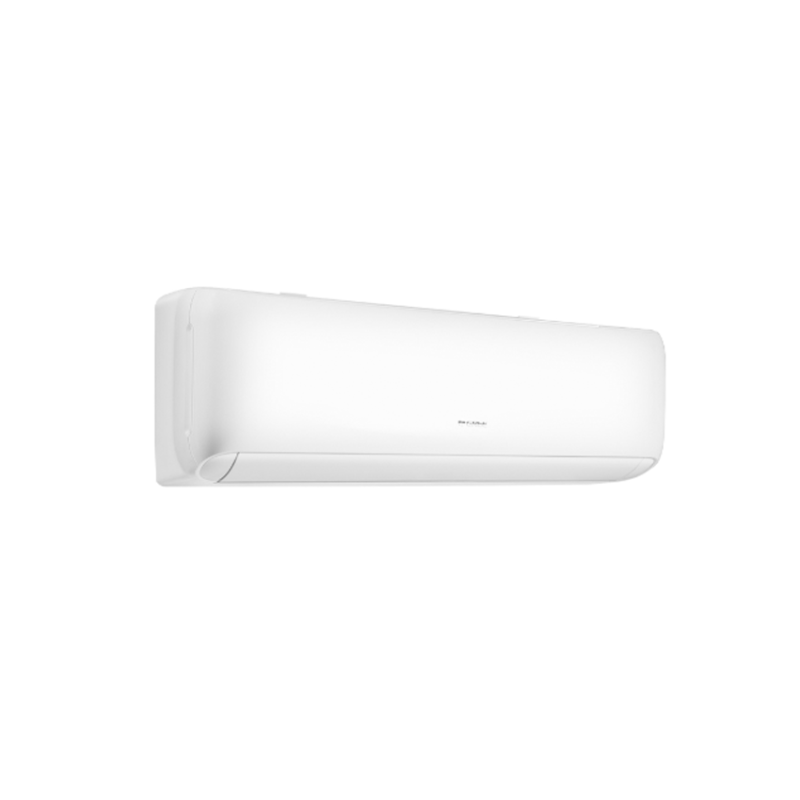

GWH24ATEXF-K6DNA1E/I |
|||||

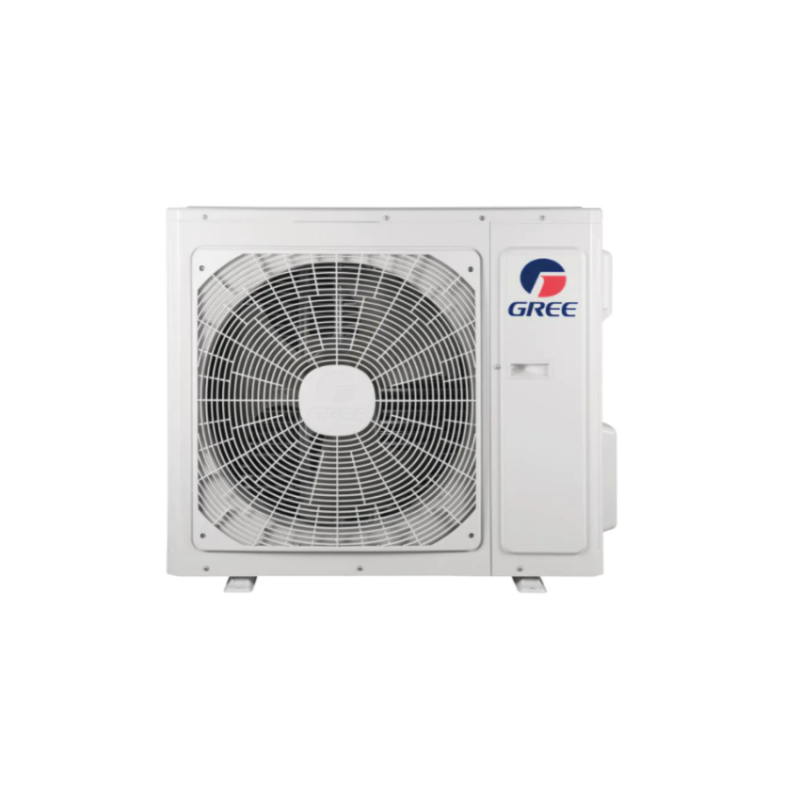

GWH24ATEXF-K6DNA1E/O |
||||||
Performance |
||||||
Cooling Capacity (Range) |
kW |
7.1 (2.5~8.5) |
||||
Heating Capacity (Range) |
kW |
7.8 (2.0~8.6) |
||||
Cooling Power Input |
kW |
1.92 |
||||
Heating Power Input |
kW |
2.0 |
||||
Cooling AEER |
W/W |
3.66 |
||||
Heating ACOP |
W/W |
3.86 |
||||
Heating Capacity H2 |
kW |
6.67 |
||||
Power Input Heating H2 |
kW |
2.27 |
||||
SERL Star Label |
Cool |
5.5/4.5/4.5 |
||||
Hot/Ave/Cold |
Heat |
3.5/2.5/2 |
||||
Dehumidifying Volume |
L/Hr |
2.5 |
||||
Air Flow Volume (Max) |
L/Sec |
375 |
||||
Sound Pressure (Min/Max) Ind |
dB(A) |
30 ~ 53 |
||||
Sound Power (Min/Max) Ind |
dB(A) |
45 ~ 68 |
||||
Sound Pressure / Power Out |
dB(A) |
60 / 69 |
||||
Electrical |
||||||
Power Supply (Outdoor) |
V/Hz/Ph |
220~240/50/1 |
||||
Recommended Circuit Breaker |
A |
25 |
||||
Nominal Current (cool/heat) |
A |
8.4 / 8.8 |
||||
Control Wiring |
3 Core plus Earth (4 Cores) |
|||||
Dimensions and Weights |
||||||
Indoor Dimensions (WxHxD) |
mm |
1078 x 333 x 246 |
||||
Indoor Net Weight |
kg |
15 |
||||
Outdoor Dimensions (WxHxD) |
mm |
958 x 660 x 402 |
||||
Outdoor Net Weight |
kg |
42.0 |
||||
Installation |
||||||
Operating Temp Range Cool |
°C |
-15° ~ 52 |
||||
Operating Temp Range Heat |
°C |
-15° ~ 24 |
||||
Refrigerant Type |
R32 |
|||||
Refrigerant Charge |
kg |
1.2 |
||||
Max Pipe Length (pre-charged) |
M |
40 (10) |
||||
Max Height |
M |
25 |
||||
Additional Refrigerant |
g/m |
16 |
||||
Pipe Connection |
mm |
1/4″ ~ 1/2″ |
Note: Above parameters are for reference only. Actual parameters may vary.
