HITACHI PCI-4.0UFA1NQ / PAS-4.0UFASMQ1 10.0kW R32 airCore700 4-WAY Cassette split system – 3 Phase

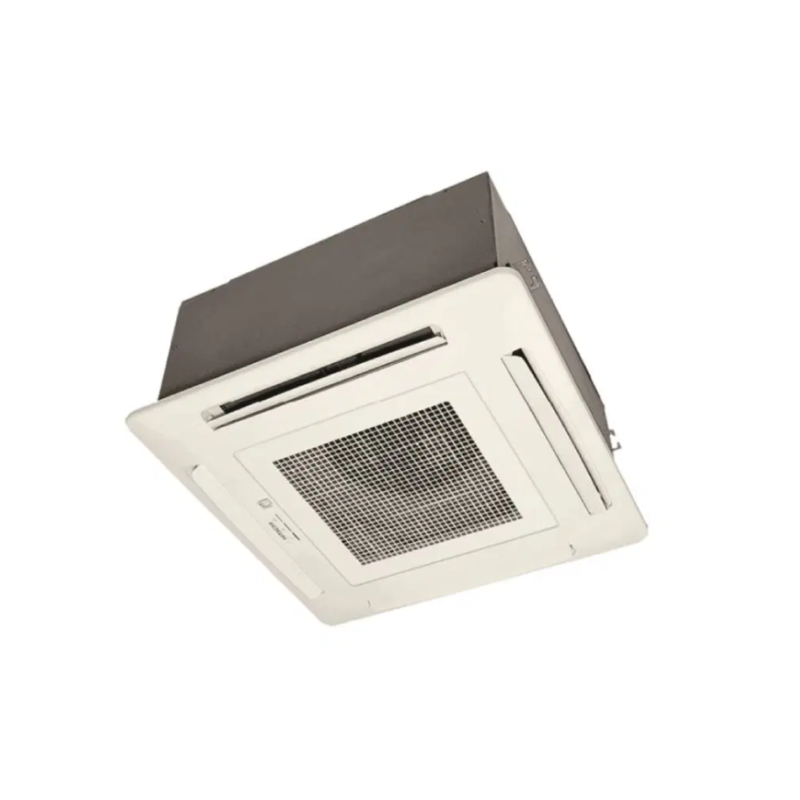

HITACHI PCI-4.0UFA1NQ – 10.0kW R32 airCore700 Multi Flow Cassette Indoor Unit
PAS-4.0UFASMQ1 – 10.0kW R32 airCore700 3Ø Inverter Outdoor Unit – Heat Pump
Fascia: PHKF160PAQ1 – Fascia to suit PCI-UFA1NQ
ALL AIRCORE 700 CASSETTE SPLIT SYSTEMS INCLUDE: PC-ARFG2-Z WIRED CONTROLLER
| Model: Indoor / Outdoor Unit | PCI-4.0UFA1NQ / PAS-4.0UFASMQ1 |
| Power supply (Indoor) V/Ph/Hz | 220~240V / 1Ø / 50Hz |
| Power supply (Outdoor) V/Ph/Hz | 380~415V / 3Ø / 50Hz |
| Max. power input – Kw | 5.5 |
| Max. current input – A | 12.0 |
| Cooling Rated Capacity Kw
Cooling Capacity Range[Min~Max] kW |
10.0
3.2~12.0 |
| Heating Rated Capacity Kw
Heating Capacity Range[Min~Max] kW |
11.5
3.5~14.0 |
| Power comsumption – Cooling kW
Power Heating – Cooling kW |
2.63
2.60 |
| AEER Cooling
ACOP Heating |
3.70
4.31 |
| TCSPF(Cooling) Commercial / Residential – Hot
TCSPF(Cooling) Commercial / Residential – Average TCSPF(Cooling) Commercial / Residential – Cold |
5.45/5.01
5.41/4.36 5.71/4.39 |
| HSPF(Heating) Commercial / Residential – Hot
HSPF(Heating) Commercial / Residential – Average HSPF(Heating) Commercial / Residential – Cold |
5.39/5.38
4.71/4.19 3.84/3.47 |
|
Indoor Unit – Fan Motor Output W Indoor Unit – Air Flow[Hi2/Hi1/Hi/Med/Lo/SLo] L/S Indoor Unit -Sound Pressure Level [Hi2/Hi1/Hi/Med/Lo/SLo] dB[A] Indoor Unit – Sound Power Level dB[A] Indoor Unit – Dimension [W×H×D] mm Indoor Unit – Packing [W×H×D] mm Indoor Unit – Net/Gross Weight kg Indoor Unit – Drainage water pipe diameter mm
|
127
510/470/390/300 47/44/40/33 58 840×288×840 945×342×945 27/31 VP25 |
|
Outdoor Unit – Compressor Type Outdoor Unit – Compressor R.L.A Outdoor Unit – Fan Motor F.L.A Outdoor Unit – Fan Motor Output W Outdoor Unit – Air Flow m3/h Outdoor Unit – Sound Pressure Level-Cooling dB[A] Outdoor Unit – Sound Pressure Level-Heating dB[A] Outdoor Unit – Sound Pressure Level-Night dB[A] Outdoor Unit – Sound Power Level dB[A] Outdoor Unit – Throttle Type Outdoor Unit – Dimension [W×H×D] mm Outdoor Unit – Packing [W×H×D] mm Outdoor Unit – Net/Gross Weigh kg
|
ATH356SKRC9EQ
11.5 0.62 138 4800 56 57 54 71 Electronic Expansion Value 950×990×320 1070×1120×470 86.5/100.5 |
| Refrigerant type/Quantity Type
Refrigerant type/Quantity Charge Kg Refrigerant type/Quantity GWP |
R32
3.0 675 |
| Design pressure H/L – MPa | 4.15/2.21 |
| Refrigerant pipe – Liquid side/Gas side MM
Refrigerant pipe – Max. pipe length M Refrigerant pipe – Max. Height difference M Refrigerant pipe – Add Refrigerant Amount g/m Refrigerant pipe – Chargeless m |
Φ9.52/Φ15.88
75 30 35 30 |
| Guaranteed Temperature Operation Range – Cooling °C | -5~52 |
| Guaranteed Temperature Operation Range – Heating °C | -20~15.5 |
airCore700 Cassette
Light Commercial Cassette Split AC System
Peace of Mind with a 6 Year Warranty
The airCore700 ducted split range comes with a comprehensive 6 Year Warranty on parts and labour, so you can be assured of the reliability and quality of your airCore700 system.
Extreme Temperature Operation
Designed for the harshest conditions, Hitachi airCore700 units are designed to operate in ambient temperatures from -20°C to 52°C to ensure you’re always comfortable, whatever the weather.
R32 low GWP Refrigerant
Reducing environmental impact, airCore700 systems use R32 refrigerant which has a lower global warming potential (GWP) than traditional R410A refrigerant.
Frostwash Self-Cleaning Technology
All indoor units are equipped with FrostWash. FrostWash freezes the dirt and dust trapped in the indoor unit heat exchanger, which is drained away with the condensate when it defrosts – effectively cleaning the heat exchanger and helping to safeguard long-term performance by maintaining good airflow. FrostWash can be activated manually or automatically at scheduled intervals.
Human Sensor
The presence of occupants is detected through a motion sensor which divides the room into 4 zones – one for each louvre. For each of the 4 zones served by a cassette, air can be served either Direct or Indirect. Therefore one zone could receive direct airflow while another has indirect airflow, catering for different personal preferences of people occupying the same area.
Occupancy sensing technology
With CrowdSense technology, select units can determine how many people are in a space and adjust the cooling or heating capacity accordingly, so the room will never get too hot or cold, whether it’s crowded or almost empty.
No more cold feet
Visual elegance with Silent Iconic
A cassette panel that offers design integration as discreet as a more expensive ducted system. Designed to match the interior, in harmony with the space. Compared with the ceiling-duct-type, the installation cost can be reduced. Taking innovation a step further, the central inlet of the unit features louvres, ingeniously integrating it flawlessly into any ceiling.
In cooling scenarios, FloorSense Cool can prevent the floor area from overcooling by controlling airflow and cooling capacity so that the air at floor level does not get as cool as air above knee height.
Airflow control
Each louvre of the compact cassette can be individually controlled for comfortable airflow and adapted to any room configuration.
Advanced Wall Control
The SPX-WKT3 wall controller offers a fully-programmable 7-day timer so units can be switched on and off automatically to conserve power when rooms are unoccupied.
Other features include:
– Track power consumption
– Eco-mode
– Ventilation Speed
– Sleep mode
– Powerful mode
– Leave home function
Energy Efficient Comfort
RAI cassette air conditioners from Hitachi deliver low-energy heating by utilising high-efficiency inverter compressor technology.
When only a small amount of heating or cooling is required, it reduces energy input to save power.
Description
10.0 kW Cooling
11.5 kW Heating
R32 | Includes Wired Controller
