Kaden Ducted Air Conditioner Kit KD42 13kW
Designed to efficiently cool or heat an entire home, Kaden reverse cycle ducted air conditioners allow you to regulate your home’s temperature effortlessly.
Provides a boost in cooling or heating power for a period of time, this allows you to reach your desired temperature quickly
| Connection Size (Liquid) | 3/8″ |
|---|---|
| Connection Size (Gas) | 5/8″ |
| Indoor Unit Depth | 625 mm |
| Indoor Unit Width | 1200 mm |
| Indoor Unit Height | 380 mm |
| Indoor Unit Weight | 54 kg |
| Outdoor Unit Width | 952 mm |
| Outdoor Unit Depth | 415 mm |
| Outdoor Unit Height | 1333 mm |
| Outdoor Unit Weight | 100 kg |
| Control | Manual Control |
|---|---|
| Model Number | KD42 |
| Refrigerant Type | R410a |
|---|---|
| Cooling Capacity (KW) | 13 kW |
| Cooling Capacity (Min-Max) | 5.0 ~ 15.5kW |
| Heating Capacity (KW) | 15 kW |
| Heating Capacity (Min-Max) | 5.0 ~ 19.0kW |
| Air Flow (Ltr/Sec) | 1028 ltr/sec |
| Phase | 1 |
| Return Transition | 1145 x 342mm |
| Supply Transition | 1000 x 253mm |
| VBIS Tag | ME-ACFCU-DX-DIC |
| Full Load Amps | 26 A |
|---|---|
| Power Supply | 240V |

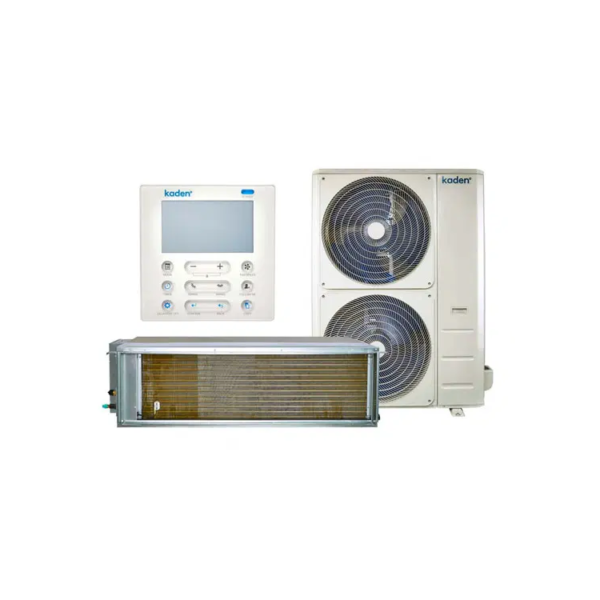

Designed to efficiently cool or heat an entire home, Kaden ducted reverse cycle air conditioners comprise an indoor and outdoor unit. The indoor unit is located inside your roof and the outdoor unit can be positioned in a convenient location outside your home. These two units work together to generate cool or warm air. They are connected by piping that carries refrigerant needed to cool or heat the air. The temperature and other settings are controlled by a wall-mounted Kaden controller.
The KD series of ducted air conditioners offer the ideal heating and cooling solution for your home. Incorporating the latest technology, the KD ducted series provides quiet operation in any environment. Working in ambient temperatures ranging from -15ºC to 50ºC, the KD series is perfect for the Australian environment.
Comfort
The unit will automatically select heating or cooling mode based on the current room conditions and set temperature.
Provides a boost in cooling or heating power for a period of time, this allows you to reach your desired temperature quickly
The unit can be set to start and /or stop at a specified time.
Set your unit to turn on and off at specific times for each day of the week.
Prevents cold air from blowing out to avoid discomfort when the heating mode is started.
Energy Saving
Feature to enable power providers to reduce compressor speed to reduce energy consumption during periods of extreme demand. This function is disabled unless an agreement exists with your power supplier.
Allows a set preferred temperate that the unit will return to each time it is turned on.
Airflow
The unit will monitor the temperature in the room and adjust the fan speed accordingly to reach the temperature quickly and efficiently.
A new eccentric fan design improves the airflow at the air outlet, resulting in better performance.
Maintenance
The 7.0kW indoor unit is easily accessible from the bottom only. The 10.0kW-17.0kW is easily accessible from the top and the bottom
Offering a built-in drain pump allows more flexibility with installation.
If there is a part failure the unit will switch off automatically to protect your air conditioner. An error code will appear to assist with a fast and easy fix.
Prevents the evaporator from freezing in low-temperature environments.
13.0 kW Cooling
15.0 kW Heating
