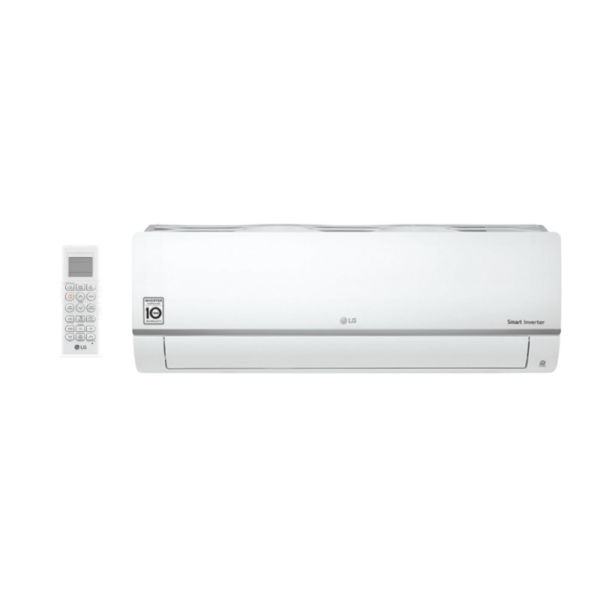

LG MS24AH3 7.0kw Multi Split Indoor Only
6.70 kW Cooling Capacity / 7.50 kw Cooling Capacity / LG MS24AH3 7.0kw Multi Split Indoor Only
| MODEL | MS24AH3 | |||
| Capacity | Cooling/Heating | Norm | kW | 7.0 / 7.5 |
| Running Current | Cooling/Heating | Norm | A | 0.33 |
| Power Supply | ø / V / Hz | 1 / 220 – 240 / 50 | ||
| Power Input | Min / Norm / Max | W | 27 / 45 / 60 | |
| Air Flow Rate | High/Medium/Low | m³/min | 16.9 / 12.8 / 10.4 | |
| High/Medium/Low | l/s | 281 / 213 / 173 | ||
| Sound Pressure | Cooling | High/Medium/Low | dBA | 46 / 41 / 36 |
| Dimension | Body | W x H x D | mm | 975 x 354 x 209 |
| Shipping | W x H x D | mm | 1063 x 420 x 274 | |
| Net Weight | Body | kg | 11.5 | |
| Shipping | kg | 14.5 | ||
| Piping Connection | Liquid | mm | ø6.35 | |
| Gas | mm | ø12.7 | ||
| Drain | (O.D. / I.D.) | mm | 21.5 / 16.0 | |
| Safety Devices | Fuse | |||
| Thermal Protector for Fan Motor |
||||
| Power & Communication Cable | No. x mm2 |
4C x 1.0 | ||
Description
7.0 kW Cooling
7.5 kW Heating
Includes Wireless Controller
Wifi Built In
