LG UBS35SET 3.4kW

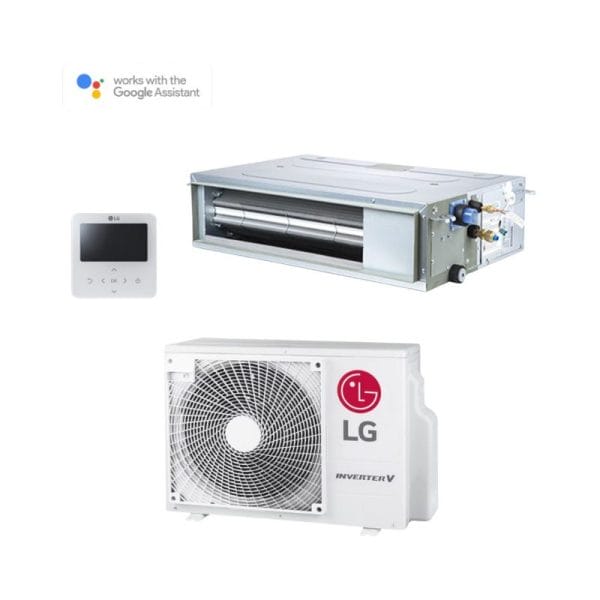

LG UBS35SET 3.4kW Single Bulkhead Air Conditioner System

SKU: UBN35L5 / UU35WR2 / PREMTB100

Indoor UBN35L5 | Outdoor UU35WR2
3.4kW Cool | 4.0kW Heat

R32, 460mm Depth, Builtin Drain Pump Black Fin


$1,410.00

Or own it from $54.23 weekly for 6 months* zip money
Or pay in slices, no interest ever
> > > > > Compare
  • Model Unit UBN35L5
    Rated Capacity Cooling kW 3.40
    Heating kW 4.00
    Capacity Range Cooling Min ~ Max kW 1.50 ~ 4.70
    Heating Min ~ Max kW 1.80 ~ 4.90
    Rated Power Input Cooling kW 4.70
    Heating kW 4.80
    AEER / ACOP Cooling / Heating – 3.343 / 3.647
    EER / COP Cooling / Heating –  –
    Rated Current Cooling / Heating A 4.70 / 4.80
    Max. Current (Full Load Amps) Indoor Unit A 10.0
    Set A –
    Air Flow Rate L/s 192
    External Static Pressure Pa 0~49
    Indoor Sound Level at 1.5m H / M / L Pressure dB(A) – / 35.0 / 30.0 / 27.0
    Dimensions W x H x D mm 900 x 190 x 460
    Weight kg 18.0
    Outdoor Sound Level at 1.5m Cooling / Heating Pressure dB(A) 49.0 / 52.0
    Sound Power Level dB(A) –
    Dimensions W x H x D mm 770 x 545 x 288
    Weight kg 33.3
    Power Supply V / Phase / Hz 1 , 50 Hz, 220-240 V
    Circuir Breaker A 15
    Compressor Type – Twin Rotary
    Refrigerant Type – R32
    Precharged Length m 7.5
    Pipe Sizes Liquid mm/inch Φ6.35 (1/4)
    Gas mm/inch Φ9.52 (3/8)
    Drain OD / ID mm ∅  32 / 25
    Max. Pipe Length m 30
    Max. Height Difference ODU ~ IDU m 30
    Supply Air Opening H x W, Flange mm 148 x 860
    Return Air Opening H x W, Flange mm 190 x 807
    Continuous Operating Range Cooling °C DB – 15 ~ 48
    Heating °C WB – 18 ~ 18
    Demand Response – –

LG UBS35SET 3.4kW Single Bulkhead Air Conditioner System – Brochure

Description

 3.4kW Cooling
4.0kW Heating

Includes standard wall controller PREMTB100
