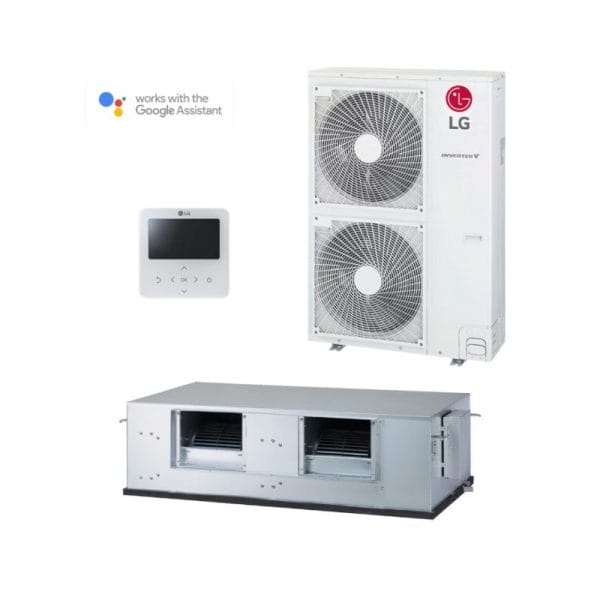

LG UHS125SET 12.50kW High Static Ducted System
LG UHN125B7 12.50kW High Static Ducted System
Indoor – UHN125B7 | Outdoor – UU125WR2
Includes standard wall controller PREMTB100
Wi-Fi & 8 Zone Compatible
| Model | Unit | UHN125B7 | ||
|
Rated Capacity |
Cooling | kW | 12.50 | |
| Heating | kW | 15.00 | ||
|
Capacity Range |
Cooling | Min ~ Max | kW | 4.00~14.80 |
| Heating | Min ~ Max | kW | 4.00~16.50 | |
|
Rated Power Input |
Cooling | kW | 14.90 | |
| Heating | kW | 16.90 | ||
| AEER /ACOP | Cooling / Heating | – | 3.679 / 3.899 | |
| EER / COP | Cooling / Heating | – | – | |
| Rated Current | Cooling / Heating | A | 14.90 / 16.90 | |
| Max. Current (Full Load Amps) | A | 29.0 | ||
| Rated Air Flow Rate | L/s | 833 / 480 ~ 1,083 | ||
|
Indoor |
Sound Level at 1.5m | H / M / L | Pressure dB(A) | – |
| Dimensions | W x H x D | mm | 1,320 x 400 x 534 | |
| Weight | kg | 50.6 | ||
|
Outdoor |
Sound Level at 1.5m | Cooling / Heating | Pressure dB(A) | 53.0 / 54.0 |
| Sound Power Level | dB(A) | 68 | ||
| Dimensions | W x H x D | mm | 950 x 1,380 x 330 | |
| Weight | kg | 89.0 | ||
| Power Supply | V / Phase / Hz | 220-240, 1, 50 | ||
| Circuit Breaker | A | 25 | ||
| Compressor Type | – | Inverter Scroll | ||
|
Refrigerant |
Type | – | R32 | |
| Precharged Length | m | 20 | ||
|
Pipe Sizes |
Liquid | mm/inch | Æ 9.52 (3/8) | |
| Gas | mm/inch | Æ 15.88 (5/8) | ||
| Drain OD / ID | mm | Æ 32 / 25 | ||
| Max. Piping Length | m | 85 | ||
| Max. Height Difference |
ODU ~ IDU |
m |
30 |
|
| Supply Air Opening | H x W, Flange | mm | 287 x 840 | |
| Return Air Opening | Oval | mm | 317 x 1,172 | |
| Continuous Operating Range | Cooling | °C DB | -15 ~ 48 | |
| Heating | °C WB | -18 ~ 18 | ||
| Demand Response | – | Capable | ||
Description
12.50kW Cooling
15.00kW Heating
Includes standard wall controller PREMTB100
Free Shipping Business Address Only NSW, VIC, QLD
