LG UHS150SET

LG UHS150SET 15.00kW High Static Ducted System

SKU: UHN150B7 / UU150WR2 / PREMTB100

LG UHN125B7 15.00kW High Static Ducted System
Indoor – UHN150B7 | Outdoor – UU150WR2

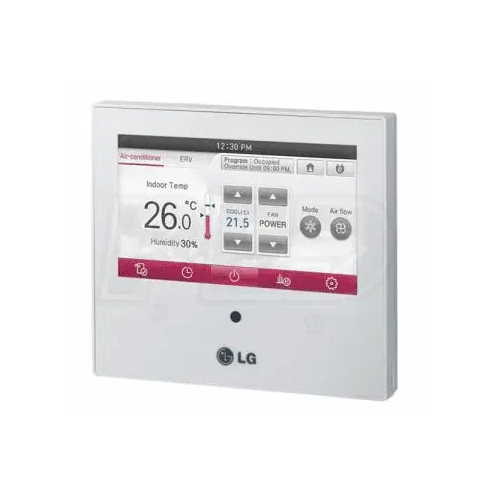

Includes standard wall controller PREMTB100

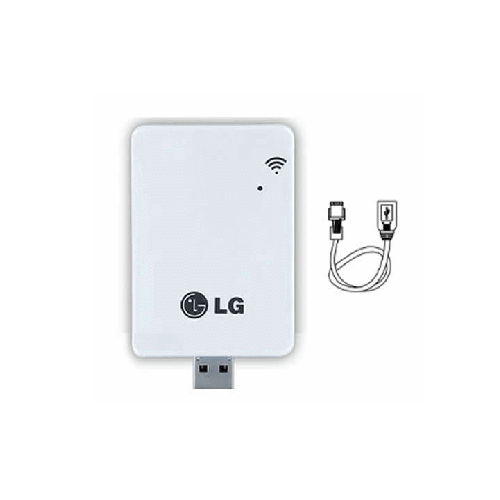

Wi-Fi & 8 Zone Compatible


$4,840.00

Or own it from $186.15 weekly for 6 months* zip money
Or pay in slices, no interest ever
> > > > > Compare
Model Unit UHN150B7


Rated Capacity

 Cooling kW 15.00
Heating kW 17.00


Capacity Range

 Cooling Min ~ Max kW 4.80~15.80
Heating Min ~ Max kW 4.80~18.00


Rated Power Input

 Cooling kW 20.40
Heating kW 20.80
AEER /ACOP Cooling / Heating – 3.228 / 3.596
EER / COP Cooling / Heating – –
Rated Current Cooling / Heating A 14.90 / 16.90
Max. Current (Full Load Amps) A 29.0
Rated Air Flow Rate L/s 1000 / 533 ~ 1,300




Indoor

 Sound Level at 1.5m H / M / L Pressure dB(A) – / 45.0 / 44.0 / 42.0
Dimensions W x H x D mm 1,320 x 400 x 534
Weight kg 50.6




Outdoor

 Sound Level at 1.5m Cooling / Heating Pressure dB(A) 53.0 / 54.0
Sound Power Level dB(A) 68
Dimensions W x H x D mm 950 x 1,380 x 330
Weight kg 89.0
Power Supply V / Phase / Hz 220-240, 1, 50
Circuit Breaker A 25
Compressor Type – Inverter Scroll


Refrigerant

 Type – R32
Precharged Length m 20




Pipe Sizes

 Liquid mm/inch Æ 9.52 (3/8)
Gas mm/inch Æ 15.88 (5/8)
Drain OD / ID mm Æ 32 / 25
Max. Piping Length m 85
Max. Height Difference

ODU ~ IDU



m



30
Supply Air Opening H x W, Flange mm 287 x 840
Return Air Opening Oval mm 317 x 1,172
Continuous Operating Range Cooling °C DB -15 ~ 48
Heating °C WB -18 ~ 18
Demand Response – Capable

LG UHS150SET 15.00kW High Static Ducted System 1 Phase Brochure

Description

15.00kW Cooling
17.00kW Heating
Includes Static Touch Panel controller PREMTB100
