LG UTS85SET 8.0kW Ceiling Mounted Cassette Inverter | R32 Black Fin

SKU: UTN85PB / UU85WR2 / PT-AAGW0 / PREMTB001

8.0kW Cooling | 8.9kW Heating

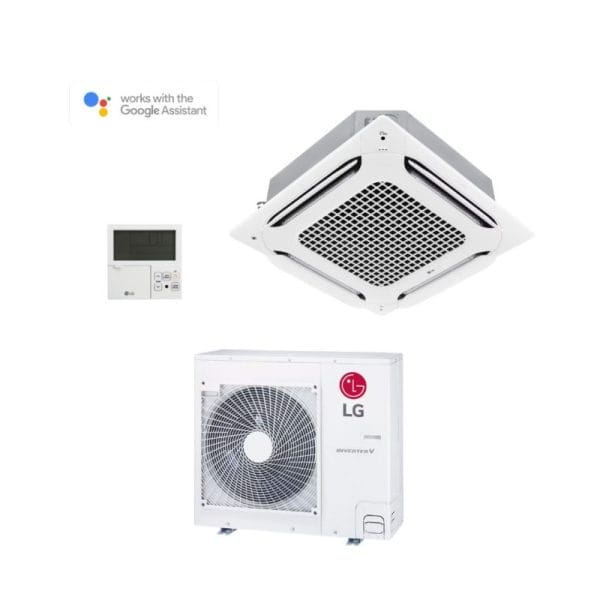

LG UTS85SET 8.0kW Ceiling Mounted Cassette Inverter

Includes Indoor – UTN85PB | Outdoor – UU85WR2
Facia- PT-AAGW0
Wired Controller- PREMTB001

Google Assistant Compatible with Wi-Fi

$3,450.00

Category		Indoor	UTN85PB
		Outdoor	UU85WR2
Combinational Specification		Unit
Cooling Capacity	Rated ²⁾	kW	8.00
	Min ~ Max	kW	3.20~9.20
Heating Capacity	Rated ²⁾	kW	8.90
	Min ~ Max	kW	3.60~10.10
AEER			3.243
ACOP			3.375
Rated Current	Cooling	A	10.90
	Heating	A	11.60
Max. Current (Full Load Amps)		A	17.0
Air Flow Rate	Rated	L/s	317
Air Flow Rate	Min ~ Max	L/s	207 ~ 412
External Static Pressure	Min ~ Max	Pa
Indoor	Net(W x H x D)	mm	840 x 204 x 840
	Net Weight	kg	21.1
	Cooling ((SH)/H/M/L)	dB(A)	– / 40.0 / 37.0 / 35.0
Outdoor	Net(W x H x D)	mm	950 x 834 x 330
	Net Weight	kg	59.0
	Cooling / Heating (@ 1.5m height)	dB(A)	50.0 / 52.0
Power Supply		Ø , Hz , V	1 , 50 Hz, 220-240 V
Circuit Breaker		A	25
Compressor	Type	–	Twin Rotary
	Motor Type	–	BLDC
Heat Exchanger	Fin Type	–	Wide Louver Plus
	Corrosion Protection (Coating)	–	Black 2
Refrigerant	Type	–	R32
	Pre-charge Length	m	10
Pipe size	Liquid	mm(inch)	Φ9.52 (3/8)
	Gas	mm(inch)	Φ15.88 (5/8)
	Drain Pipe(Drain Pump) OD/ID	mm(inch)	Ø 32(1-1/4) / 26(1-1/32)
Piping Length	IDU – ODU(Rated / Max / Min)	m	7.5 / 50.0 / 5.0
Maximum Height Difference	IDU – ODU(Max)	m	30
Supply Air Opening	H x W, Flange (Discharge)	mm	64.3 x 577
Return Air Opening	Oval (Suction)	mm	563 x 563
Continuous Operation	Cooling	°C (DB)	-15 ~ 48
	Heating	°C (WB)	-18 ~ 18
Wi-Fi Compatible ⁴⁾			Optional
