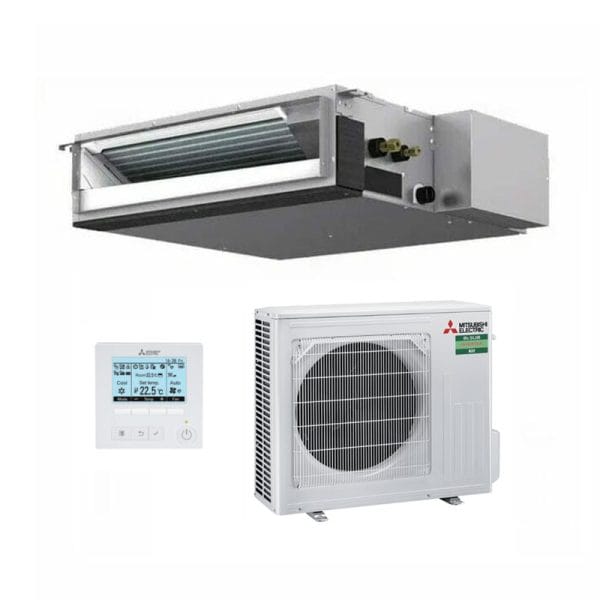

MITSUBISHI ELECTRIC SEZM50DAKIT 5kW Bulkhead Inverter R32 | PAR-41MAAM Wired Controller – Single Phase
MITSUBISHI ELECTRIC SEZM50DAKIT 5kW Bulkhead Inverter | PAR-41MAAM Wired Controller
Indoor: SEZ-M50DA.TH Indoor – Compact Ducted
Outdoor : SUZ-M50VAD-A.TH R32 Outdoor – Dred Capable
Bulkhead Units Low Height Model 200mm High (Wired Controller Included)
| Indoor unit | SEZ-M50DA(L) | ||
| Outdoor unit | SUZ-M50VAD-A | ||
|
Cooling
|
Capacity (Min-Rated-Max) | kw | 2.3-5.0-6.3 |
| Air Volume (In) Lo-Mid-Hi | L/S | 167-208-250 | |
|
Sound Pressure Level
|
In (Lo-Mid-Hi) | 30-34-37 | |
| Out (PWL) | 48 (64) | ||
|
Heating
|
Capacity (Min-Rated-Max) | kw | 1.7-6.0-7.2 |
| Air Volume (In) Lo-Mid-Hi | L/S | 167-208-250 | |
|
Sound Pressure Level
|
In (Lo-Mid-Hi) | 30-34-37 | |
| Out (PWL) | 49 (66) | ||
|
Indoor unit
|
Input (Rated) | kw | 0.07 |
| Dimensions (HxWxD) | mm | 200x990x700 | |
| Weight (Panel) | kg | 22(-) | |
|
Outdoor unit
|
Dimensions (HxWxD) | mm | 714 x 800 x 285 |
| Weight | kg | 41 | |
|
Guaranteed Operating Range (Outdoor)
|
Cooling | DegC | -15 ~ 52 |
| Heating | DegC | -15 ~ 24 | |
| Diameter [Liquid/Gas] | mm | ø6.35/ø12.70 | |
Description
5.0 kW Cooling
6.0 kW Heating
Low Height Model 200mm | Wired Controller
