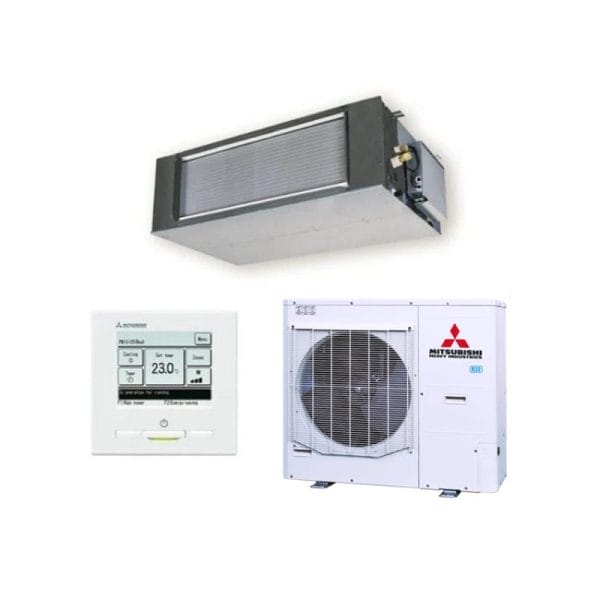

Mitsubishi Heavy Industries FDUA100AVSAWVH 10.0kW High Static Ducted System | 3 Phase

SKU: FDUA100AVSAWVH / RC-EXZ3A

10.0 kW Cooling
11.2 kW Heating
R32 | RC-EXZ3A Backlit Controller
max pipe length 50mtrs
Mitsubishi Heavy Industries FDUA100AVSAWVH 10.0kW High Static Ducted System | 3 Phase
Includes Indoor: FDUA100VH | Outdoor FDCA100VSA-W

Pre charged 30m
Max Pip length 50m

$4,058.00

Or own it from $156.08 weekly for 6 months*

Or pay in slices, no interest ever

9.5 x 15.88mm (3/8 x 5/8)> Ducted air conditioning> High Static | FDUA Series> Mitsubishi Heavy Industries Ducted Air Conditioners> View All Ducted Systems Compare

CAPACITY				10KW
Set				FDUA100AVSAWVH
Indoor				FDUA100VH
Outdoor				FDCA100VSA-W
Power Source (Outdoor Unit)				3 Phase 380-415V 50Hz
*Operation Data	Nominal Capacity Range	Cooling T1	kW	10.0 (4.0-11.2)
		Heating H1		11.2 (4.0-12.5)
		Heating H2		10.00
	Power Consumption	Cooling T1		3.05
		Heating H1		2.87
	Max Power Consumption			10.20
	Running Current	Cooling T1	A	4.7
		Heating H1		4.4
	Inrush Current, Maximum Current			5, 17
	EER	Cooling T1		3.28
	COP	Heating H1		3.90
	Sound Power Level (JS C9612)	Outdoor	dB(A)	70
	Sound Pressure Level (JS C9612)	Indoor		P-Hi:43 Hi:42 Me:40 Lo:37
		Outdoor		55
External Dimensions (HXWXD)		Indoor	mm	398x1150x650
		Outdoor		845x970x370
Net Weight		Indoor	Kg	54
		Outdoor		78
Supply Air Connection			mm	348×898
Return Air Connection				348×898
External Static Pressure (Max)			Pa	200
Airflow		Indoor (Cooling)	l/s	P-Hi:650 Hi:600 Me:550 Lo:483
		Indoor (Heating)
Refrigerant (Type, Amount, Pre-charge Length)		Quantity	kg	(R32) 3.3
		Pre Charged To Pipe Length	m	30
Installation Data	Refrigerant Piping	Liquid Line	mm	Ø9.52
		Gas Line		Ø15.88
	Connection Method			Flare connection
	Maximum Pipe Length (One Way)		m	50
	Max vertical height diff. between O.U. and I.U.			50 ( O.U. above I.U. ) / 15 ( O.U. below I.U. )
Controller				RC-E5, RC-EXZ3A, RCH-E3 or RCN-KIT4-E2
Safety Pan (Optional)				UA-SP2-E
Motion Sensor (Optional)				LB-KIT2
Demand response (AS4755)				Yes
Outdoor air temperature (upper, lower limits)		Cooling	oC	-15 to 50
		Heating		-20 to 20

■ R32 REFRIGERANT
■ LIGHTER, MORE COMPACT OUTDOOR UNIT
■ EXTERNAL PIPE CONNECTION FOR EASE OF ACCESS
■ QUIETER OPERATION
■ DUCTED UNITS COMPATIBLE WITH FLEXIZONE

View the brochure of Mitsubishi Heavy Industries Ducted System
