Panasonic 7.1kW S-71PE3R / U-71PZ3R5 High Static Ducted AC System | 1 Phase

SKU: S-71PE3R/U-71PZ3R5/CZ-RTC5B

7.1 kW Cooling | 7.1 kW Heating

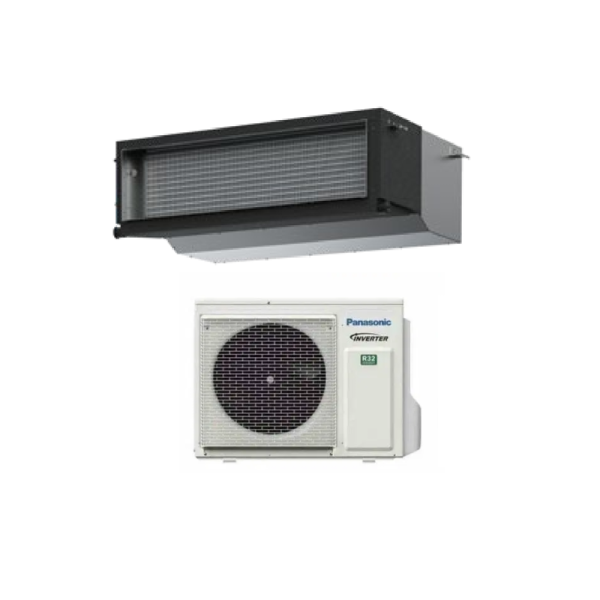

Panasonic 7.1kW S-71PE3R / U-71PZ3R5 High Static Ducted Air Conditioner System | 1 Phase

Consisting of an outdoor unit and a concealed indoor unit, a ducted system delivers air through ducting pipes (usually in the ceiling) into each room via vents on the floor, wall or ceiling. Panasonic ducted systems look very discreet and have been designed with flexibility in mind, which is extremely helpful when designing a system for your home, and also makes installation much easier. A Panasonic ducted air conditioner will provide years of comfort for you and your family, and it will add value to your home as ducted air conditioning is a highly desirable feature for home buyers.

Experience an outstanding operating temperature range. Cooling is possible even at an outside temperature of 48°C and heating possible even at a freezing -20ºC. Panasonic outdoor units are built to last in the harsh Australian environment. Internal components are built to withstand the damaging effects of salty air, dust, wind and rain. Panasonic Air Conditioning is amongst the quietest in the world. Both our indoor and outdoor units have been engineered to ensure you get a peaceful night’s sleep.

  • Panasonic Inverter technology
  • Compact and flexible design
  • High Static Ducted


$3,660.00

> > > > > Compare
Cooling (kW): 7.10 (2.0 – 7.7)
Heating (kW): 7.10 (2.1 – 8.1)
Airflow (l/sec) H/M/L: 501/434/367
Indoor Dimensions H x W x D (mm): 360 x 1200 x 700
Outdoor Dimensions H x W x D (mm): 695 x 875 x 320
Power Supply (V/Ph/Hz): 240/1/50
Power Supply Connection: Outdoor
Max Amp Outdoor: 14.8
Refrigerant Type: R32
Pipe Sizes (Liquid/Gas mm): 6.35 / 15.88(indoor unit requires 9.52 to 6.35 reducer liquid, supplied in box)
Min/Max Pipe Run (m): 3 / 40
Pre-Charged Run (m): 30
Add Refrigerant Charge (g/m): 17
Max Elevation – OU Higher/Lower than IU (m): 15 / 30
Supply Air Connection H x W (mm): 266 x 1024
Return Air Connection H x W (mm): 266 x 1024
Weight Indoor/Outdoor (kg) 36 / 50

24-hour nanoe™X Air Purification*

While the general filters in air purifiers are effective against airborne bacteria and viruses, nanoe™X also works to inhibit longer-living, adhered bacteria and
viruses. With ducted design, it helps to clean the air in your whole home, giving you the quality air you need.

Air Purification System

Purify your Air with or without cooling or heating. Panasonic’s nanoe™ X Technology is a revolutionary air purification system that keeps your living space fresh and clean for you and your family.

Sensitive Choice

Sensitive Choice is a community service program that aims to educate people about the importance of managing their asthma and allergies. Developed by the National Asthma Council Australia in 2006, the program also encourages companies to produce products and services that are more asthma and allergy aware.

Panasonic and Sensitive Choice have partnered to introduce nanoe™ X to the Australian market. Purifying your air 24 hours, the nanoe™ X feature can function independently or concurrently with your air conditioner. This market leading Air Sterilisation technology works towards the inhibition of bacteria, viruses, allergens, pollens and mould within your indoor environment, whilst deodorising, keeping your home or office fresh and clean. Panasonic & Sensitive Choice are committed to bringing you Quality Air, for Life.

The 7 reasons to use Panasonic nanoeX

  1. Active Deodorisation – Penetrating into the deepest parts of fibres, nanoe™X eliminates frequently encountered odours, creating cleaner and fresher spaces.
  2. Inhibition of Hazardous Substances – nanoe™X has been confirmed to inhibit and breakdown common hazardous / harmful substances ensuring that the air you breathe is cleaner and safer.
  3. Inhibition of Mould – Common airborne and adhered mould found inside living / working spaces are enveloped and inhibited by nanoe™X.
  4. Inhibition of Bacteria & Viruses – nanoe™X envelops and inhibits the activity of airborne and adhered bacteria & viruses.
  5. Inhibition of Pollen – nanoe™X is effective in inhibiting a variety of pollens globally, all year around.
  6. Inhibition of Major Allergens – nanoe™X inhibits allergens such as pet dander, mite faeces / carcasses, and airborne mould, as well as other major allergens.
  7. Moisturises and Hydrates – nanoe™X combines with natural sebum (natural skin oils) to coat the skin, leading to a smoother, well-hydrated complexion.

Complete Air Purification Wherever You Are

Keep nanoe™X mode running while you’re away, or simply use the Panasonic Comfort Cloud App to return to a fresh smelling home every time. Ensure the air that you breathe is cleaner and safer by keeping nanoe™X mode running 24 hrs.

High Energy Efficiency

Through the use of state-of-the-art DC motors, Panasonic Adaptive Ducted units perform with high energy efficiency.

Flexible Design, Powerful Airflow

With variable external static pressure control, optimal airflow set-up is possible for different ducting design and conditions.

Built in Drain Pump

The Panasonic Slim-line Ducted unit features a high-lift drain pump. Drain piping can be elevated up to 701mm from the base of the unit.

Slim & Compact Design

The Panasonic Adaptive Ducted unit sits at only 250mm high. This market leading height enables easy installation into compact ceiling spaces.

Industry Leading Vertical Installation

Our ground-breaking drain pan design delivers a ducted unit that can be mounted horizontally or vertically without the need for alterations*. Even when ceiling space for ductwork is limited, the slim design and powerful 150Pa static pressure allow for discrete placement away from rooms for total installation flexibility.

Click here to view the brochure of Panasonic 7.1kW S-71PE3R / U-71PZ3R5 High Static Ducted System | Single Phase

High Static Pressure

Control all aspects of your environment with exceptional performance and quiet operation. Vertical installation flexibility offers the perfect solution when ceiling heights are restricted.

Designed for Australia

Experience an outstanding operating temperature range. Cooling is possible even at an outside temperature of 48°C and heating possible even at a freezing -20ºC.

Built Tough to Last

Our outdoor units are built to last in the harsh Australian environment. Internal components are built to withstand the damaging effects of salty air, dust, wind and rain.

Count on Panasonic

Panasonic air conditioners are manufactured to ensure years of comfort. We even back our reliability by offering a full 5 year parts and labour warranty for residential and commercial use.

Quiet Operation

Panasonic Air Conditioning is amongst the quietest in the world. Both our indoor and outdoor units have been engineered to ensure you get a peaceful night’s sleep.
