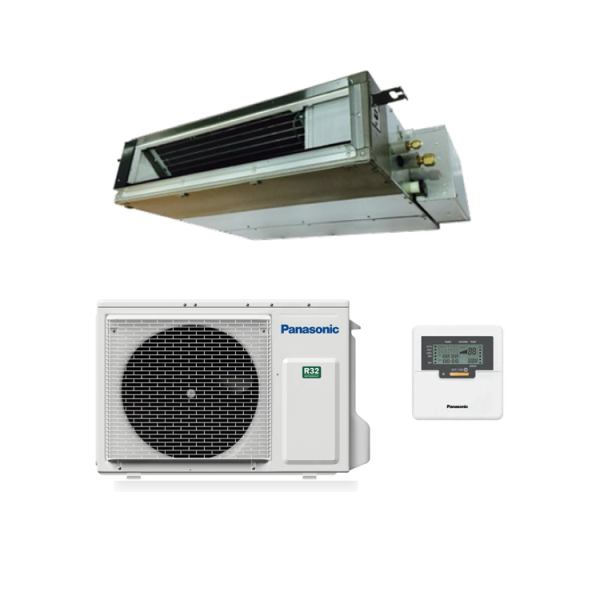

Panasonic Inverter Ultra Slim Ducted 6.0 kW CS-Z60UD3RAW / CU-Z60UBRA Bulkhead -R32
6.0 kw Cooling
7.0 kw Heating
Indoor : CS-Z60UD3RAW
Outdoor: CU-Z60UBRA
Includes Wired Controller
With a height of just 200mm, the Panasonic Ultra Slim Ducted unit is the perfect solution to any application where space is limited. In an increasingly energy conscious world, Panasonic strives to create air conditioners with class leading energy efficiency. Panasonic’s Premium Inverter technology features the ability to regulate room temperature with little fluctuation, and reduce wasteful operation, resulting in increased energy savings. Achieved with rear or bottom return air, coupled with a built in drain pump, the Ultra Slim Ducted unit is the perfect solution for commercial and residential applications with limited space for a ducted indoor unit.
| Indoor Unit | CS-Z60UD3RAW | |
| Outdoor Unit | CU-Z60UBRA | |
| Function | Cooling + Heating | |
| Cooling Capacity Rated Conditions | kW | 5.6 |
| Cooling Capacity Range – Min ~ Max | kW | 0.90 ~ 6.50 |
| EER | w/w | 3.29 |
| Heating Capacity Rated Conditions | kW | 7.0 |
| Heating Capacity Range – Min ~ Max | kW | 0.90 ~ 8.00 |
| COP | w/w | 3.24 |
| Sound Pressure Indoor – Cool – Hi / Med / Lo | dB(A) | 41 / 30 / 27 |
| Sound Pressure Indoor – Heat – Hi / Med / Lo | dB(A) | 41 / 32 / 29 |
| Sound Power Outdoor – Cool – Hi / Med / Lo | dB(A) | 57 / 46 / 43 |
| Sound Power Outdoor – Heat – Hi / Med / Lo | dB(A) | 57 / 48 / 45 |
| Air Flow – Cool / Heat | L/s | 262 / 262 |
| Indoor Dimensions – H x W x D | mm | 200 x 750 x 640 |
| Outdoor Dimensions – H x W x D | mm | 695 x 875 x 320 |
| Weight – Indoor | kg | 19 |
| Weight – Outdoor | kg | 43 |
| Refrigerant Pipe Diameter – Liquid Side / Gas Side | mm | Ø6.35 / Ø12.70 |
| Piping Extension Length Min ~ Max | m | 3 ~ 30 |
| Elevation Difference | m | 20 |
| Operating Temperature Range – Outdoor – Cooling | °C | -10 ~ 46 |
| Operating Temperature Range – Outdoor – Heating | °C | -15 ~ 24 |
Compact Design
With a height of just 200mm, the Panasonic Ultra Slim Ducted unit is the perfect solution to any application where space is limited.
High Energy Efficiency
In an increasingly energy conscious world, Panasonic strives to create air conditioners with class leading energy efficiency. Panasonic’s Premium Inverter technology features the ability to regulate room temperature with little fluctuation, and reduce wasteful operation, resulting in increased energy savings.
Flexible Installation
Achieved with rear or bottom return air, coupled with a built in drain pump, the Ultra Slim Ducted unit is the perfect solution for commercial and residential applications with limited space for a ducted indoor unit.
High Performance
Panasonic’s Premium Inverter technology is designed for high performance, keeping you comfortable all year round. With a superior operating range, our air conditioning systems provide comfort with ease, regardless of indoor or outdoor conditions.
Anti Corrosion
All heat exchangers feature our Blue Fin technology, which increases resistance to corrosion compared to non-Blue Fin models.
* Refer to the installation instructions for further details.
* Graphics are for illustrative purposes only.
A Smarter Way to Control Your Air
The Panasonic Comfort Cloud App & WLAN Smart Adaptor deliver convenient control, connectivity and comfort. Seamlessly adjust temperature, monitor energy consumption, change modes, etc. all from just one mobile device*.
* CZ-TACG1 WLAN Adaptor required per unit. Requires an Internet connection and the App downloaded from the App Store or GooglePlay Store on your smartphone or tablet with the latest Operating System available.
*Functionality may vary depending on models.
Intuitive Voice Control
Introducing intuitive voice control with Google Assistant and Amazon Alexa control compatibility*. Using your existing Google assistant or Alexa devices, control your air conditioner with just your voice.
* CZ-TACG1 or CZ-CAPWFC1 WLAN Adaptor required per unit. Requires an Internet connection and the App downloaded from the App Store or GooglePlay Store on your smartphone or tablet with the latest Operating System available.
*To use Amazon Alexa to control your air conditioner, you will need an Amazon Echo device.
*To use Google Assistant to control your air conditioner, you will need an Google Assistant device.
*Google is a trademark of Google LLC. Amazon, Alexa and all related logos are trademarks of Amazon.com,Inc. or its affiliates.
*Functionality may vary depending on models.
Click here to download the brochure of Panasonic Inverter Ultra Slim Ducted 6.0 kW CS-Z60UD3RAW / CU-Z60UBRA Bulkhead -R32
Panasonic Ultra Slim Ducted
Slim, discrete, and perfectly suited to bulkhead installations.
- WLAN Control Possible (CZ-TACG1 is needed) • Market-leading Energy Efficiency
- Only 200mm High
- Rear or Bottom Return Air Options
- Built-in Drain Pump
- -15°C to +46°C Operating Range
Description
6.0 kw Cooling
7.0 kw Heating
Includes Wired Remote Controller
