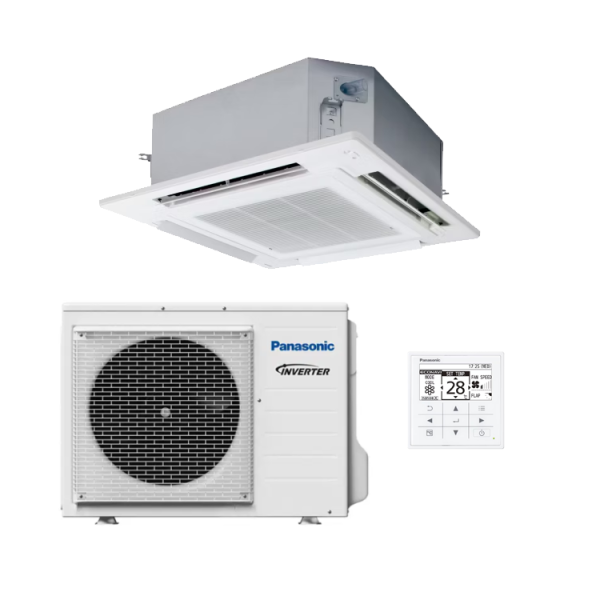

Panasonic S-1014PU3E / U-125PZ3R8 12.5kW R32 Cassette – Three Phase
Indoor : S-1014PU3E
Outdoor: U-125PZ3R8
Controller : CZ-RTC5B -Deluxe Wired Remote Controller
| Cooling (kW): | 12.5 |
| Heating (kW): | 12.5 |
| Airflow (l/sec) H/M/L: | 617/450/317 |
| Indoor Dimensions H x W x D (mm): | 319 x 840 x 840 |
| Outdoor Dimensions H x W x D (mm): | 996 x 980 x 370 |
| Power Supply (V/Ph/Hz): | 415/3/50 |
| Power Supply Connection: | Outdoor Unit |
| Refrigerant Type: | R32 |
| Pipe Sizes (Liquid/Gas mm): | 9.35/15.88 (No indoor reducers required) |
| Min/Max Pipe Run (m): | 5/50 |
| Pre-Charged Run (m): | 30 |
| Add Ref Charge (g/m): | 45 |
| Max Elevation – OU Higher/Lower than IU (m): | 30/15 |
| Weight Indoor/Outdoor (kg): | 25/87 |
Description
12.5 kW Cooling
12.5 kW Heating
Includes Wired Controller and Fascia
