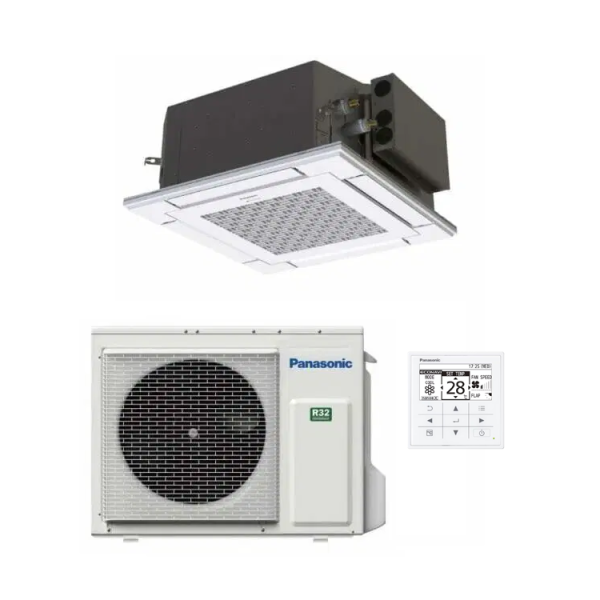

Panasonic S-60PY3E / U-60PZ3R5 6kW 4-Way Mini Cassette | NanoeX
Panasonic S-60PY3E / U-60PZ3R5 6.0kW 4-Way Mini Cassette | NanoeX
Controller: CZ-RTC5B
Redesigned for a lower vertical profile, it fits easily into a standard 60 x 60cm ceiling grid without the need to alter bar configuration. This makes the Low Profile Mini Cassette ideal for small commercial and retrofit applications, in particular those with lower ceilings.
- Market-leading energy efficiency
- Compact design (230mm High)
- Easy installation
- Built-in drain pump
- Mini cassette fits into a 600 x 600mm ceiling grid
- Powerful drain pump gives 850mm lift
- DC fan motor with variable speed and a new heat exchanger ensures efficient power consumption
- Multi-directional air flow
| Capacity | 6.0KW | ||
| Model Name | Indoor Unit | S-60PY3E | |
| Outdoor Unit | U-60PZ3R5 | ||
| Panel | CZ-KPY4 | ||
| Receiver | CZ-RWRY3 | ||
| Cooling capacity | kW | 6.0 (2.0-7.0) | |
| Heating capacity | 6.0 (1 .8-7.0) | ||
| Cooling capacity | BTU/h | 20,500 (6,800-23,900) | |
| Heating capacity | 20,500 (6,100-23,900) | ||
| EER : COP | W/W | 3.39 : 3.61 | |
| Power input (min – max) | Cooling : Heating | kW | 1 .77(0.34-2.53): 1 .66(0.39-2.45) |
| Indoor Unit | |||
| Power source | Phase/Hz | 1 Phase/ 50Hz | |
| V | 230v 240v | ||
| Current | Cooling, Heating | A | 8.10, 7.35 / 7.75, 7.05 |
| Dimensions | H x W x D | mm | 243 x 575 x 575 |
| Net weight | kg | 15 | |
| Air volume | Cooling : Heating | L/S | 233 : 233 |
| Sound pressure level (H/M/L) | Cooling : Heating | dB(A) | 43/37/31 : 43/37/31 |
| Sound power level (H/M/L) | Cooling : Heating | dB(A) | 58/52/46 : 58/52/46 |
| Outdoor Unit | |||
| Power source | Phase/Hz | 1 Phase / 50Hz | |
| V | 230v / 240v | ||
| Dimensions | H x W x D | mm | 695 x 875 x 320 |
| Net weight | kg | 43 | |
| Piping connections | Liquid / Gas | mm | Ø6.35 / Ø12.7 |
| Pipe length | min. – max. | m | 3 — 40 |
| Elevation difference | m | 30 | |
| Operation ranges | Cooling : Heating | oC | -10 — 46 : -15 — +24 |
1. Deodorises – nanoe™X deodorises strong and unpleasant odours so you can enjoy a more pleasant, fresher space.
2. Actively Inhibits Bacteria & Viruses on Surfaces and in the Air – Unlike standalone air purifiers, Panasonic nanoe™X actively spreads ions through the air and onto surfaces. These ions reach deep into the fibres of clothing, sofas and carpet and inhibit up to 99% of airborne and adhered bacteria and viruses *9-*14.
Not only does nanoe™X inhibit bacteria & viruses, it also inhibits other pollutants including mould, allergens, pollen and hazardous substances.
What’s more, nanoe™X is good for your skin and hair. It combines with natural sebum (natural skin oils) to coat the skin, leading to a smoother, well-hydrated complexion.
nanoe™X are tiny, nano-sized electrostatic water particles that contain ions and Hydroxyl radicals. These Hydroxyl radicals within the nanoe™X react to hydrogen (H) contained in pollen, bacteria, viruses, and odour compounds, altering their molecules and inhibiting them. The Hydroxyl radicals then return to air as water (H₂0).
Panasonic air conditioners can generate millions of nanoe™X particles, which constantly clean the air. Seven beneficial effects can be achieved with Panasonic nanoe™X.
- Compact, stylish design
Thanks to advanced Panasonic design the panel is a compact 625 x 625mm, offering elegant, unobtrusive installation even where space is limited. - Lighter and slimmer for easier installation
When only 230mm of indoor body height, it can easily fit in limited spaces and tight spots. (Required 243mm from bottom of panel to top of the unit). - Individual flap control
Keep everyone comfortable by directing air where it’s needed and away from where it isn’t with individual flap control. - A drain height of up to 850mm from the ceiling surface
The internal pump allows the drain pipe to be elevated up to 850mm above the base of the unit.
Description
6.0 kW Cooling
6.0 kW Heating
Air Purification – nanoe™X | R32
