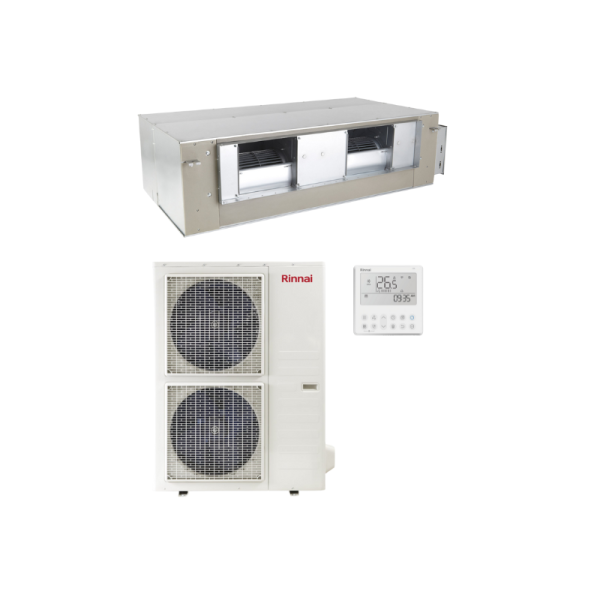

Rinnai DINLR07B1 | DONSR07B1 7.kW Inverter Ducted Air Conditioner System | 1 Phase

SKU: DINLR07B1 / DONSR07B1 / CNTRLDRCINW

7.3 kW Cooling | 7.5 kW Heating
Rinnai model DINLR07B1 / DONSR07B1 7.0kW Inverter Ducted Air Conditioner System | 1 Phase R32
Includes Indoor DINLR07B1 | Outdoor DONSR07B1
Controller with WIFI built in CNTRLDRCINW

$2,585.00

Or own it from $99.42 weekly for 6 months*

Or pay in slices, no interest ever

9.5 x 15.88mm (3/8 x 5/8)> Ducted air conditioning> Rinnai Air Conditioning> Rinnai Ducted Air Conditioners> View All Ducted Systems Compare

Rinnai – System Model No			07
Nominal Capacity		kW	7
Power Supply (To Outdoor Unit)		V- Ph-Hz	220~240 – 1 – 50
Maximum Input Power		W	3400
Maximum Input Current		A	16.0
Recommended Circuit Breaker Size		A	20
Cooling	Rated Capacity	kW	7.3
	Capacity Range	kW	2.38 ~ 9.00
	Rated Input Power	W	2100
	Rated Input Current	A	9.8
	AEER	W/W	3.4
Heating	Rated Capacity	kW	7.5
	Capacity Range	kW	1.79 – 10.5
	Rated Input Power	W	1.7
	Rated Input Current	A	7.9
	ACOP	W/W	4.3
Indoor Unit			DINLR07B1
Rated Input		W	90
Rated Current		A	1.6
Air Flow (With Filter)	High Speed	L/s (ESP)	480 (100 Pa)
Air Flow (Minimum)		L/s (ESP)	140
Maximum External Static Pressure (ESP)		Pa	160
Noise Level	Sound Pressure @ 1.4m (Hi / Med / Lo)	dB(A)	38.5/35.5/32.5
Dimensions	Net (W × D × H)	mm	1100x774x249
	Packing (W × D × H)	mm	1305x805x315
	Net / Gross weight	kg	32/38.5
Duct Connections	Supply Air (W × H)	mm	926 x 175
Duct Connections	Return Air (W × H)		1001 x 228
Condensate Drain Pipe Outer Diameter			25
Refrigerant Piping	Liquid / Gas Connections		9.5 /15.9
Moisture Removal		L/h	2
Controller		Type	Wired Programmable Controller with Wi-Fi Contro
Operating Range		°C	Cooling: 17 ~ 32, Heating: 0 ~ 30
Outdoor Unit			DONSR07B1
Power Supply		V-Ph-Hz	220 – 240 – 1 – 50
Starting Current		A	2.2
Compressor		Type	Twin Rotary
Sound Pressure Level @ 1m		dB(A)	60
Sound Power Level		dB(A)	65
Dimensions	Net (W × D × H)	mm	890 x 342 x 673
	Packing (W × D × H)	mm	995 x 398 x 730
	Net / Gross weight	kg	45 / 48
Refrigerant Piping	Type		R32
	Pre-Charged Length	mm	15m
	Charge Adjustment (Add or Remove)	g/m	24
	Liquid / Gas Connections	mm	9.5 / 15.9
	Maximum Pipe Length	mm	50
	Minimum Pipe Length		3
	Maximum Vertical Separation		25
Ambient Temperature Limits		°C	Cooling: -15 ~ 50. Heating -20 ~ 24

Rinnai’s Ducted Air Conditioning system discreetly delivers powerful home heating and cooling, keeping you comfortable regardless of the extremes outside.

Concealed in your roof cavity, the efficient indoor fans & DC compressor quietly operate and the advanced ducted inverter control mechanisms ensure a controlled warm-up and cool down with outstanding energy efficiency ratings.

Enjoy the exceptional benefits of a Reverse Cycle Air Conditioner without the hassle of installing and the sight of multiple indoor units. Condition and filter the air in your whole home, or choose to zone specific areas tailored to individual comfort levels.

3 times more efficient than conventional heating, Rinnai’s Ducted Air Conditioning system features optional Wi-Fi, programmable controller, and slimline design.
