Rinnai DINLR11B1 - DONSR11B1 11.0kW Inverter Ducted Air Conditioner System - 1 Phase

Rinnai DINLR11B1 | DONSR11B1 11.0kW Inverter Ducted Air Conditioner System | 1 Phase

SKU: DINLR11B1 / DONSR11B1 / CNTRLDRCINW

10.5kW Cooling | 11.5kW Heating
Rinnai model DINLR11B1 | DONSR11B1 11.0kW Inverter Ducted Air Conditioner System | 1 Phase R32

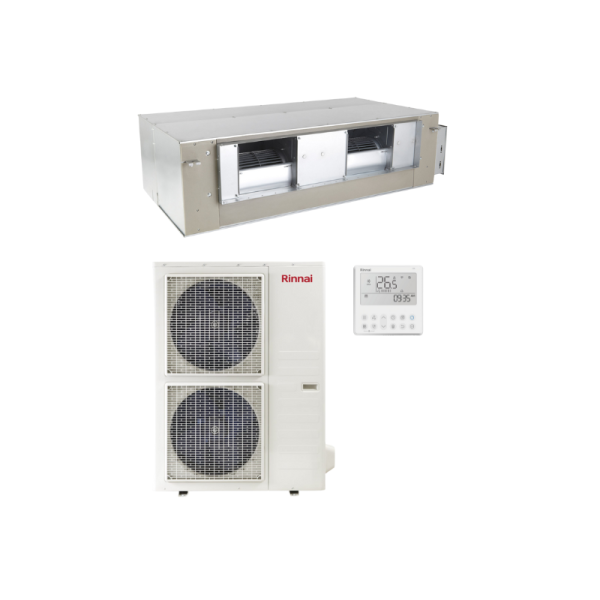

Includes Indoor DINLR11B1 | Outdoor DONSR11B1
Controller with WIFI built in CNTRLDRCINW


$3,055.00

Or own it from $117.50 weekly for 6 months* zip money
Or pay in slices, no interest ever
> > > > Compare
Rinnai – System Model No 11
Nominal Capacity kW 11
Power Supply (To Outdoor Unit) V- Ph-Hz 220~240 – 1 – 50
Maximum Input Power W 4600
Maximum Input Current A 21.0
Recommended Circuit Breaker Size 25
Cooling Rated Capacity kW 10.5
Capacity Range 3.15 ~ 11.85
Rated Input Power W 3100
Rated Input Current A 14.2
AEER W/W 3.4
Heating Rated Capacity kW 11.5
Capacity Range 3.45 – 13.50
Rated Input Power W 2.7
Rated Input Current A 12.8
ACOP W/W 4.3
Indoor Unit DINLR11B1
Rated Input W 560
Rated Current A 2.5
Air Flow (With Filter) High Speed L/s (ESP) 710 (150Pa)
Air Flow (Minimum) L/s (ESP) 190
Maximum External Static Pressure (ESP) Pa 200
Noise Level Sound Pressure @ 1.4m
(Hi / Med / Lo)		 dB(A) 39/37/34.5
Dimensions Net (W × D × H) mm 1200x625x380
Packing (W × D × H) 1485x675x450
Net / Gross weight kg 53/62
Duct
Connections		 Supply Air (W × H) mm 1000 x 253
Return Air (W × H) 1145 x 334
Condensate Drain
Pipe Outer Diameter		 25
Refrigerant
Piping		 Liquid / Gas Connections 9.5 / 15.9
Moisture Removal L/h 2.7
Controller Type Wired Programmable Controller with Wi-Fi Contro
Operating Range °C Cooling: 17 ~ 32, Heating: 0 ~ 30
Outdoor Unit DONSR11B1
Power Supply V-Ph-Hz 220 – 240 – 1 – 50
Starting Current A 2.5
Compressor Type Twin Rotary
Sound Pressure Level @ 1m dB(A) 62
Sound Power Level 68
Dimensions Net (W × D × H) mm 946 x 410 x 810
Packing (W × D × H) 1090 x 500 x 845
Net / Gross weight kg 70 / 75
Refrigerant
Piping		 Type R32
Pre-Charged Length mm 15m
Charge Adjustment
(Add or Remove)		 g/m 24
Liquid / Gas Connections mm 9.5 / 15.9
Maximum Pipe Length mm 75
Minimum Pipe Length 3
Maximum Vertical
Separation		 30
Ambient Temperature Limits °C Cooling: -15 ~ 50. Heating -20 ~ 24

Rinnai’s Ducted Air Conditioning system discreetly delivers powerful home heating and cooling, keeping you comfortable regardless of the extremes outside.

Concealed in your roof cavity, the efficient indoor fans & DC compressor quietly operate and the advanced ducted inverter control mechanisms ensure a controlled warm-up and cool down with outstanding energy efficiency ratings.

Enjoy the exceptional benefits of a Reverse Cycle Air Conditioner without the hassle of installing and the sight of multiple indoor units. Condition and filter the air in your whole home, or choose to zone specific areas tailored to individual comfort levels.

3 times more efficient than conventional heating, Rinnai’s Ducted Air Conditioning system features optional Wi-Fi, programmable controller, and slimline design.

Features:

  • 8 zones
  • Zone temperature control
  • Sleep timer
  • AC Unit control
  • Favourites and schedules
  • 5% Airflow control adjustments
  • WI-FI & Remote access
  • ‘Filter Clean’ reminder with adjustable frequency
  • Heating & Cooling
  • Slimline Design
  • Wi-Fi Control
  • Programmable Controller
  • Fast Temperature Control
  • Reduced Operational Costs
  • Quiet Operation
  • Zoning Option

Click here to view the brochure of the Rinnai Ducted Air Conditioning System

Description

10.5 kW Cooling
11.5 kW Heating
