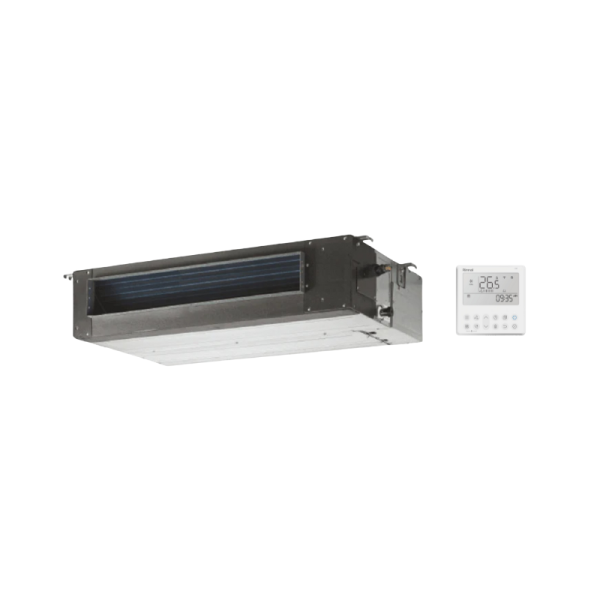

Rinnai DINSD35MB 3.5kW Multi Head Ducted System Indoor Unit Only
Rinnai DINSD35MB 3.5kW Multi Head Ducted System Indoor Unit Only
3.5 kW Cooling
3.3 kW Heating
Includes Wired Remote Control
| Slim Ducted | DINSD35MB | ||
| Power Supply | V-Ph-Hz | ||
| Rated Capacity | kW | 3.5 | |
| Cooling | Rated Input Power | W | 185 |
| Rated Input Current | A | 1.1 | |
|
Heating
|
Rated Capacity | kW | 3.8 |
| Rated Input Power | W | 185 | |
| Rated Input Current | A | 1.1 | |
| Airflow (Hi / Med / Lo) | L/s | 500 / 340 / 230 | |
| Maximum External Static Pressure (Hi) | Pa | 60 | |
| Sound Pressure (Hi / Med / Lo) @1.4m | dB(A) | 40 / 34 / 27 | |
| Net (W x D x H) | mm | 700 x 506 x 200 | |
| Gross (W x D x H) | 860 x 540 x 285 | ||
| Net / Gross Weight | kg | 18 / 22 | |
| Dimensions | |||
|
Supply Air Duct Connection (W x H)
|
537 x 152 | ||
| Return Air Duct Connection (W x H) | mm | 599 x 186 | |
|
Refrigeration Pipe Size: Liquid / Gas
|
Φ6.35 / Φ9.52 | ||
| Condensate Drain Pump Connection | mm | ||
| Controller | Type | ||
|
Operating Range
|
Cooling | oC | 17 ~ 32 |
| Heating | oC | 0 ~ 30 | |
Description
3.5 kW Cooling
3.3 kW Heating
Includes Wired Remote Control
