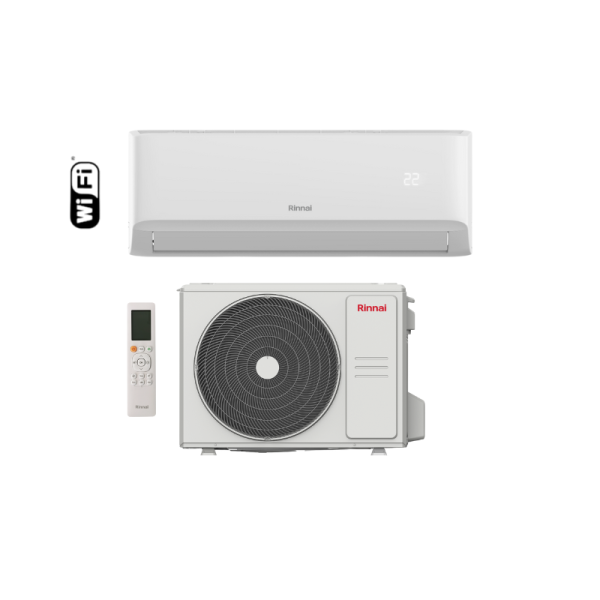

Rinnai – System Model | HSNRP26B | ||
Nominal Capacity | kW | 2.65 | |
Power Supply (To Outdoor Unit) | V – Ph – Hz | 220~240 – 1 – 50 | |
Maximum Input Current | A | 10.50 | |
Maximum Input Power | W | 2300 | |
Recommended Circuit Breaker | A | 16 | |
Connectivity | – | Wi-Fi Enabled | |
Demand Response Enabling Device | – | DRED Enabled | |
Cooling | Rated Capacity | kW | 2.65 |
Capacity Range | 1.00 – 3.50 | ||
Rated Input Power | W | 530 | |
Rated Input Current | A | 2.50 | |
AEER | W/W | 4.98 | |
TCSPF (Hot/Mixed/Cold) | – | 8.02/7.497/7.887 | |
Star Rating (Hot/Average/Cold) | – | Star | 6.5 / 5.5 / 6.0 |
Heating | Rated Capacity | kW | 2.70 |
Capacity Range | 1.40 – 4.00 | ||
Rated Input Power | W | 510 | |
Rated Input Current | A | 2.50 | |
ACOP | W/W | 5.273 | |
HSPF(Hot/Mixed/Cold) | – | 5.79/5.35/4.96 | |
Star Rating (Hot/Average/Cold) | – | Star | 4.0 / 3.5 / 3.0 |
Moisture Removal | L/h | 1.00 | |
Suitable Area (up to 2.6m insulated ceiling) | m2 | 11-17 | |
Indoor Unit | HINRP26MB | ||
Air Flow (Turbo / Hi / Med / Lo / Silent) | L/s | 175/139/100/83/56 | |
Sound Pressure @ 1.0m (Turbo / Hi / Med / Lo / Silent) | dB(A) | 46.4/39/32.5/30/24.5 | |
Dimensions | Dimension (W x H x D) | mm | 802x295x200 |
Packing (W x H x D) | 875×375×288 | ||
Net / Gross Weight | kg | 8.5/11.5 | |
Operating Range | Cooling | ℃ | 16~32 |
Heating | 0~30 | ||
Standard Controller | Model | Wireless Remote Control | |
Outdoor Unit | HONRP26B | ||
Sound Pressure Level @ 1m | 57.8 | ||
Dimensions | Dimension (W x H x D) | mm | 805x554x330 |
Packing (W x H x D) | 915x615x370 | ||
Net / Gross Weight | kg | 32.2/35.1 | |
Refrigerant | Type | R32 | |
Charged Volume | kg | 0.90 | |
Refrigerant Piping | Pipe Size: Liquid / Gas | mm | 6.35/9.52 |
Maximum Pipe Length | m | 25 | |
Chargeless Length | 10 | ||
Extra Charge for Lengths >10m | g/m | 12 | |
Maximum Vertical Separation | m | 10 | |
Ambient Temperature Limits | Cooling | ℃ | 0~52 |
Heating | -15~24 |
