-$185.00

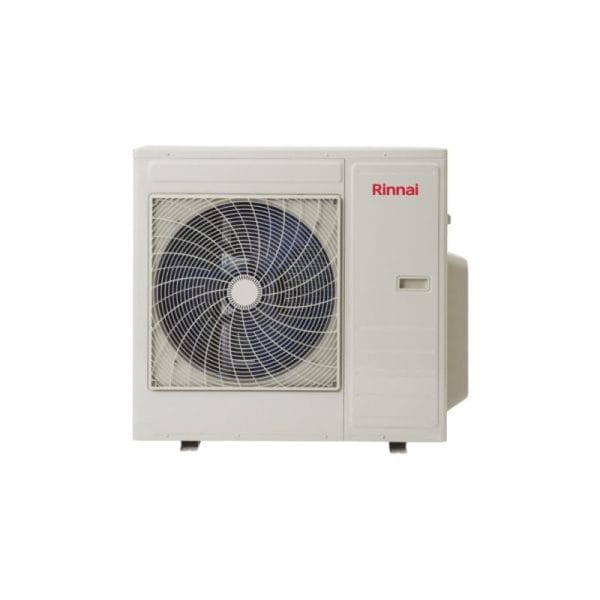

Rinnai MON3H07B 7.5kW Multi Head System Outdoor Unit Only | R32 new model

SKU: MON3H07B

Save: $185.00

Original price was: $2,300.00.Current price is: $2,115.00.

Save: $185.00

Multi Outdoor Unit			MON3H07B
Number of connected Indoor Units		Qty	3
Power Supply (To Outdoor Unit)		V-Ph-Hz	220~240-1-50
Cooling	Rated Capacity (Range)	kW	7.5 (1.7-9.8)
	Rated Input Power	kW	1.98
	Rated Input Current	A	8.9
	AEER	W/W	3.71
Heating	Rated Capacity (Range)	kW	7.4(1.8-9.6)
	Rated Input Power	W	1.59
	Rated Input Current	A	7.28
	ACOP	W/W	4.54
Maximum Input Current		A	17.5
Recommended Circuit Breaker		A	25
Compressor		Type	Inverter Twin Rotary
Sound Power Level		dB(A)	66
Dimensions	Net (W x D x H)	mm	890 x 342 x 673
	Gross (W x D x H)	mm	1030 x 438 x 790
	Net / Gross Weight	kg	48.0/61.5
Refrigerant Type			R32
Refrigerant Piping	Connection Size: Liquid Line	mm	3 x Φ 6.35
	Connection Size: Gas	mm	3 x Φ 9.52
	Maximum Total System Pipe Length	m	60
	Pre-Charged Length	m	30
	Maximum Length Per Indoor Unit	m	30
	Maximum Vertical Separation Outdoor Unit ABOVE Indoor Unit	m	10
	Maximum Vertical Separation Outdoor Unit BELOW Indoor Unit	m	15
	Maximum Height Difference Between Indoor Units	m	10
	Factory Precharge	g	1850
Ambient Temperature Limits	Cooling	°C
Ambient Temperature Limits	Heating	°C
