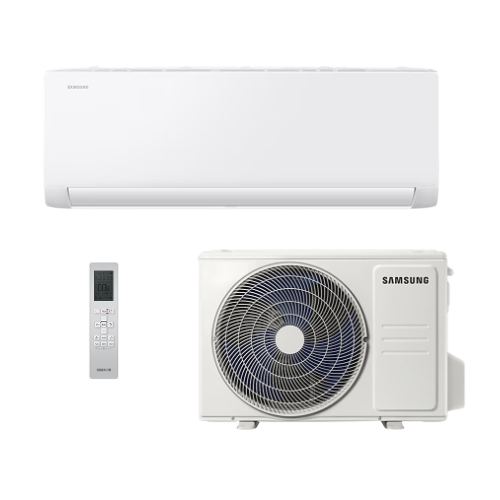

Samsung F-AR30BXECNWK1 8.0kW Airise Windfree Inverter Reverse Cycle Split System
8.0 kW Cooling
9.0 kW Heating
Includes Indoor: AR30BXECNWKNSA | Outdoor: AR30BXECNWKXSA
Samsung F-AR30BXECNWK1 8.0kW Airise Windfree Inverter Reverse Cycle Split System
WiFi Built In | Air Purification | R32
Original price was: $3,100.00.$2,475.00Current price is: $2,475.00.
| Cooling capacity | 8.00kW | ||
| Room size guide | Open living: >60m² | ||
| Model code | F-AR30BXECNWK1 | ||
|
Capacity
|
Heating capacity | 9.00kW | |
| Capacity (cooling, min – max) | 2.5 ~ 9.3kW | ||
| Capacity (heating, min – max) | 2.4 ~ 13.0kW | ||
|
Air purification
|
Tri-Care filter | Yes | |
| Easy Filter Plus (anti-bacteria) | Yes | ||
| Freeze Wash | Yes | ||
| Auto Clean (self cleaning) | Yes | ||
|
Convenience
|
Built-in Wi-Fi (SmartThings) | Yes | |
| AI Auto Cooling | Yes | ||
| Fast Cool | Yes | ||
| Good Sleep | Yes | ||
| Dehumidification | Yes | ||
|
Refrigerant
|
Type | R32 | |
| Weight (kg) | 2.0 | ||
|
Installation
|
Max. length (outdoor to indoor) | 30 | |
| Chargeless length (outdoor to indoor) | 15 | ||
| Max. height (between ID/OD) | 15 | ||
|
Energy efficiency
|
EER (cooling) | 3.27W/W | |
| COP (heating) | 3.27W/W | ||
| Star rating (cooling – hot/average/cold) | 3.0 / 3.0 / 3.0 | ||
| Star rating (cooling – hot/average/cold) | 3.0 / 2.0 / 1.5 | ||
| Electrical data | Power source(Φ/V/Hz) | 1 / 220~240 / 50 | |
|
Indoor unit
|
Shipping dimension (WxHxD) | 1115 x 290 x 375mm | |
| Net dimension (WxHxD) | 1055 x 299 x 215mm | ||
| Shipping weight | 14.0kg | ||
| Net weight (kg) | 12.4kg | ||
| Noise level (high/low) | 47 / 30dBA | ||
|
Outdoor unit
|
Shipping dimension (WxHxD) | 995 x 1096 x 426mm | |
| Net dimension (WxHxD) | 940 x 998 x 330mm | ||
| Shipping weight | 72.0kg | ||
| Net weight (kg) | 67.8kg | ||
| Noise level (high/low) | 57dBA | ||
|
Technical information
|
Piping length (max) | 30m | |
| Piping height (max) | 15m | ||
| Connection size (liquid) | 6.35 | ||
| Connection size (gas) | 15.88 | ||
|
Operating range
|
Low ambient (cooling) | -10 ~ 46℃ | |
| Low ambient (heating) | -15 ~ 24℃ | ||
| 1. Specification may be subject to change without prior notice. 2. Performance is based on the following test conditions: Cooling: Indoor temperature 27°C DB, 19°C WB, Outdoor temperature 35°C DB, 24°C WB. Heating: Indoor temperature 20°C DB, 15°C WB, Outdoor temperature 7°C DB, 6°C WB. Equivalent refrigerant pipe length 5m, Level differences 0m. 3. Select wire size based on maximum current amps and in accordance with local electrical regulation standards. 4. Sound pressure level is obtained in an anechoic room. The sound pressure level is a relative value, depending on the distance and acoustic environment. Sound pressure levels may differ depending on operation conditions. This information should be used as a guide only. There are many variables that will affect the requirements of your air conditioning, such as orientation, usage, dimensions, construction materials, insulation, equipment, heat loads, etc. For cooling, if your room is a warm room with a lot of sun exposure during summer, then it is recommended that you use the smaller room size as your guide. |
Cool down fast, without the cold blast
WindFree™
Stay comfortably cool with WindFree™ Cooling.* It is designed to gently and quietly disperse air through 23,000 micro air holes, so there is no unpleasant feeling of cold wind on your skin.
Energy Superstar
WindFree™* Cooling Mode
When operating in WindFree™ for Cooling mode, the outdoor unit consumes over 77% less energy than when operating in Fast Cooling mode.**
Supporting a restful night’s sleep
WindFree™* Good Sleep
WindFree™™ Good Sleep mode can help you to create the ideal sanctuary for sleeping – without an unpleasant cold air flow. Its temperature control with WindFree™* Cooling can help you to set the environment for a deep, comfortable sleep to wake up feeling fully refreshed.
Breathes in the things you shouldn’t
Tri-Care Filter
Keep the air hygienic and maintain the performance of the Heat Exchanger with a Tri-Care Filter. Its 3 layers include a high-density filter that is designed to help extract large dust particles, fibers and even animal hairs. It also has a Zeolite Coating Filter that is designed to help capture fine dust, and reduce certain potentially dangerous viruses, bacteria and allergens.
Keep Fresh
Auto Clean Function
When the Air Conditioner unit is turned off, the Auto Clean function automatically runs the fan on low speed for a period of time to dry off moisture within the heat exchanger of the indoor unit. This keeps it dry to minimise the growth of bacteria.
Cool the house from your commute
Wi-Fi and the SmartThings app
Control your home air conditioner from anywhere, at anytime using the Samsung SmartThings App. You can control and monitor the air conditioner remotely with just a touch.##
Does the thinking for you
AI Auto Cooling
AI Auto Cooling* is designed to automatically optimise the various modes by analysing room conditions and usage patterns.** Based on your preferred temperature, it can automatically switch to the most appropriate mode to maintain desirable conditions.
Rest assured with Samsung Quality
5 Year Parts and Labour Warranty
Samsung wall mounted splits are supported by 5 year parts and labour warranty for residential applications.` Full terms and conditions visit Samsung Warranty
The Samsung WindFree™ split air conditioning system is designed to offer intelligent airfl ow control. It helps
you maintain your comfort level, providing effi ciency and reliability to deliver amazing performances.
Reliability often is a key factor when choosing an air conditioning system. Samsung air conditioners offer
robust design and reliability to help ensure consistent performance.
Description
Cooling 8.0kW
Heating 9.0kW
WiFi Built In | Air Purification | R32
