Toshiba RAV-GM1101CTP-A 10.0kW Super Digital Inverter Under Ceiling System 3 Phase
10.0 kW Cooling | 11.2 kW Heating

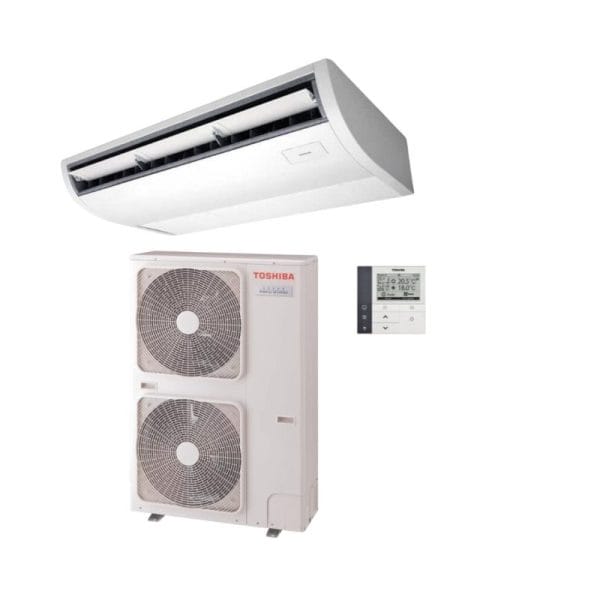

Toshiba Indoor RAV-GM1101CTP-A | Outdoor RAV-GP1101AT8P-A 10.0kW Super Digital Inverter Under Ceiling System 3 Phase
Wired Controller with Weekly Timer: RBC-AMSU51-ES
| INDOOR UNIT | RAV-GM1101CTP-A | |
| OUTDOOR UNIT | RAV-GP1101AT8P-A | |
| Cooling Capacity Range | kW | 10.0 [2.6 – 12.0] |
| Heating Capacity Range | kW | 11.2 [2.4 – 13.0] |
| EER | 4.15 | |
| COP | 4.4 | |
| Maximum Operating Current | A | 16.5 |
| Dimensions – Indoor [H x W x D] | mm | 235 x 1586 x 690 |
| Dimensions – Outdoor [H x W x D] | 1340 x 900 x 320 | |
| Weight – Indoor / Outdoor | kg | 37 / I00 |
| Airflow [H / M / L] | l/s | 516 / 375 / 283 |
| Sound Pressure Level Indoor / Outdoor | dB(A) | 44 / 51 |
| Operating Range Cooling | oC db | -15 to 52 |
| Operating Range Heating | -20 to 24 | |
| Pipe Sizes (Liquid / Gas) | mm | 9.52 / 15.88 |
| Maximum Pipe Length / Lift | m | 75 / 30 |
| Maximum Pre-charged Length | 30 | |
| Power Supply | Ph / v / Hz | 3ph / 380-415V / 50Hz |
SELF CLEANING FUNCTION
Toshiba’s self-cleaning function is designed to reduce the humidity that causes mold to form inside an air- conditioning units. 20 minutes of fan operation after shut down dries the moist air and helps reduce mold formation on heat exchanger coils.
SMOOTH CURVES
Toshiba’s new Under Ceiling units have adopted a more rounded and sleek chassis design to compliment any decor.
OPTIONAL DRAIN PUMP
Reduce mold formation with the optional drain pump kit with built-in glass that aids in mold formation over time.
AIR CONTROL
The airflow angle is automatically set to the most suitable setting according to your cooling or heating needs, and an automatic swing mode enables airflow to reach all areas of the room to create a comfortable ambience.
RE-DESIGNED WIDER FLAP
The new air outlet has been re-designed allowing for high noise reduction and increased air volume circulation compared to the previous series.
COMFORTABLE AMBIENCE
With the implementation of the improved fan design, the Toshiba under ceiling unit now has increased air volume circulation and reduced noise levels compared to the previous models.
Air throw can now extend up to 4.3m, creating comfortable spaces with reduced cold & hot spots.
Description
10.0 kW Cooling
11.2 kW Heating
