Size and Dimensions
Size | 250mm |
---|
Part Number | EZV250L |
---|
Material | Injected Moulded Plastic |
---|
Motor Type | 3Nm Metalflex Motor |
---|---|
Hertz | 50/60Hz |
Current Type | AC |
RPM | 1 RPM |
VBIS Tag | ME-Da |
Power Supply | 24V |
---|---|
Total Motor Watts (High) | 5 W |

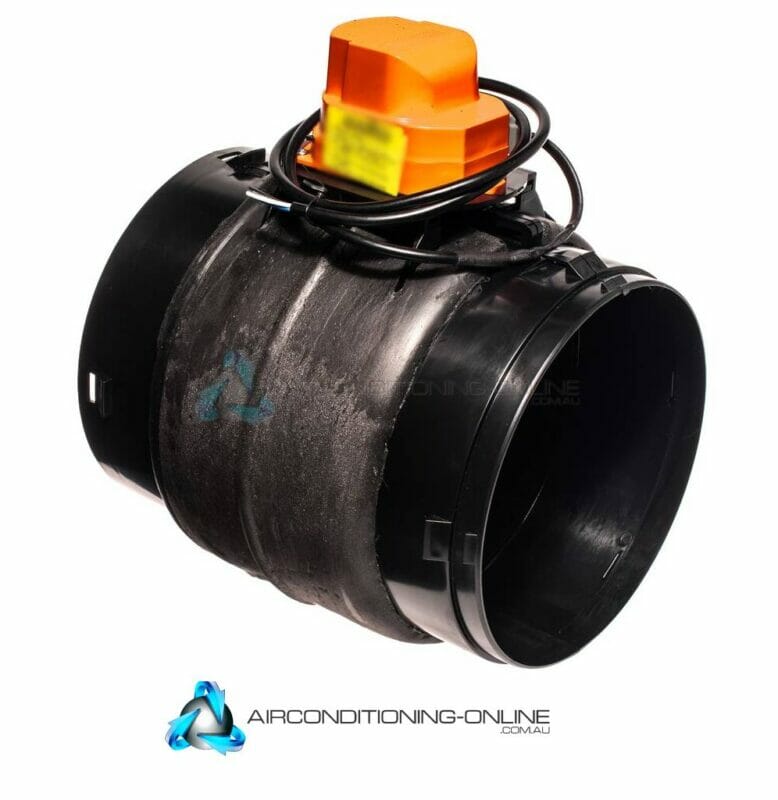

Zone Damper 24v 250mm
Size | 250mm |
---|
Part Number | EZV250L |
---|
Material | Injected Moulded Plastic |
---|
Motor Type | 3Nm Metalflex Motor |
---|---|
Hertz | 50/60Hz |
Current Type | AC |
RPM | 1 RPM |
VBIS Tag | ME-Da |
Power Supply | 24V |
---|---|
Total Motor Watts (High) | 5 W |
Forms part of SAMS Smart Air Movement System | |
Damper position indicator | |
Revolutionary design that can be snapped onto Multisnap Y, Multisnap D, Multisnap B, EZY Reducer or EZY Collar | |
Super Strong Injected moulded plastic construction | |
Internal body ribbing eliminates need for damper blade for seal | |
Support hooks for easy hanging | |
Holding teeth enabling easier fitment of flexible duct core | |
Closed cell polyethylene foam insulation material with consistent all round thickness |
